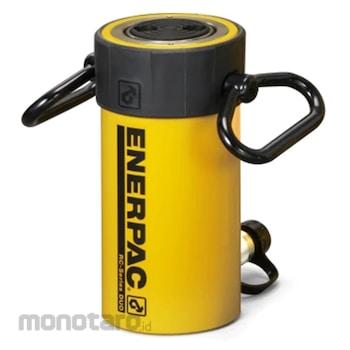

Enerpac Hydraulic Cylinder 50 Ton (Single Acting) RC506 1pc

Name: Enerpac Hydraulic Cylinder 50 Ton (Single Acting) RC506 1pc
Brand: Enerpac
SKU: S028020158
Price: 31999900 IDR
Availability: InStock

#Nomor SKU S028020158

Enerpac

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	RC506
Unit	1pc
Maximum Operating Pressure (bar)	700
Capacity Class (tonnage)	50
Maximum Cylinder Capacity Advance (kN)	498
Stroke (mm)	159
Collapsed Height A (mm)	283
Extended Height B (mm)	442
Return Type	Single-Acting, Spring Return
Plunger Type	Solid
Material	Steel
Cylinder Effective Area Advance (cm²)	71.3
Oil Capacity Advance (cm³)	1131
Surface Treatment	Paint
Outside Diameter D (mm)	127
Base Mounting Holes Thread Depth Z (mm)	19
Cylinder Bore Diameter E (mm)	95.2
Plunger Diameter F (mm)	79.4
Base to Advance Port H (mm)	35
Saddle Diameter J (mm)	71
Collar Thread W (inch)	5-12UN
Collar Thread Length X (mm)	55
Berat (Kg)	24.1
Tanggal Produk Terdaftar	07 May 2021
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Product Lines : Industrial Tools
- Unique GR2 Bearing Design, reduces wear, extending life
- Base mounting holes enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy-duty, pretensioned spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- CR-400 coupler and dust cap included on all models
- Plunger wiper reduces contamination, extending
