Product Lines : Industrial Tools
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 20 tons increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
Features CR400 Coupler

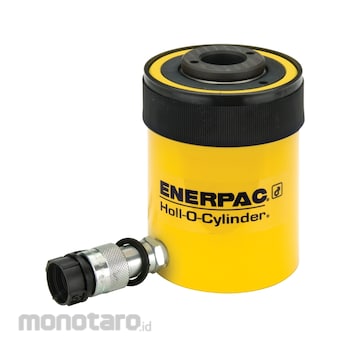

Enerpac Hydraulic Cylinder 30 Ton (Single Acting) Hollow Plunger RCH302 1pc
Rp30.999.900
Persediaan
Spesifikasi Produk
| Model Number | RCH302 |
|---|---|
| Unit | 1pc |
| Maximum Operating Pressure (bar) | 700 |
| Capacity Class (tonnage) | 30 |
| Maximum Cylinder Capacity Advance (kN) | 326 |
| Stroke (mm) | 64 |
| Collapsed Height A (mm) | 178 |
| Extended Height B (mm) | 242 |
| Return Type | Single-Acting, Spring Return |
| Plunger Type | Hollow |
| Material | Steel |
| Cylinder Effective Area Advance (cm²) | 46.6 |
| Oil Capacity Advance (cm³) | 298 |
| Surface Treatment | Paint |
| Outside Diameter D (mm) | 114 |
| Cylinder Bore Diameter E (mm) | 88.9 |
| Link Height J (mm) | 130 |
| Link Opening L (mm) | 151 |
| Link Thickness M (mm) | 40 |
| Link Width N (mm) | 48 |
| Slot To Link End T (mm) | 70 |
| Berat (Kg) | 10.6 |
| Tanggal Produk Terdaftar | 06 May 2021 |
| Terakhir Diperbaharui | 27 May 2025 |
