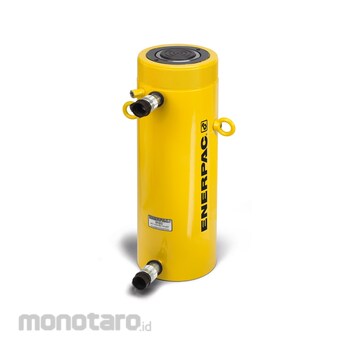

Enerpac Hydraulic Cylinder 100 Ton (Double Acting) RR10013 1pc

Name: Enerpac Hydraulic Cylinder 100 Ton (Double Acting) RR10013 1pc
Brand: Enerpac
SKU: S028016113
Price: 139999900 IDR
Availability: InStock

#Nomor SKU S028016113

Enerpac

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	RR10013
Unit	1pc
Maximum Operating Pressure (bar)	700
Capacity Class (tonnage)	100
Maximum Cylinder Capacity Advance (kN)	933
Stroke (mm)	333
Collapsed Height A (mm)	524
Extended Height B (mm)	857
Return Type	Double-Acting, Hydraulic Return
Plunger Type	Solid
Material	Steel
Cylinder Effective Area Advance (cm²)	133.3
Cylinder Effective Area Retract (cm²)	62.2
Oil Capacity Advance (cm³)	4439
Oil Capacity Retract (cm³)	2071
Surface Treatment	Paint
Outside Diameter D (mm)	101
Cylinder Bore Diameter E (mm)	73.2
Plunger Diameter F (mm)	54.1
Base to Advance Port H (mm)	39
Saddle Diameter J (mm)	50
Saddle Protrusion from Plunger K1 (mm)	10
Berat (Kg)	92.9
Tanggal Produk Terdaftar	06 May 2021
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Product Lines : Industrial Tools
- Collar threads, plunger threads and base mounting holes for easy fixturing
- Baked enamel finish for increased corrosion resistance
- Removable hardened saddles protect plunger during lifting and pressing
- Built-in safety valve prevents accidental over-pressurization
- Plunger wiper reduces contamination, extending cylinder life
- CR-400 included on all models
