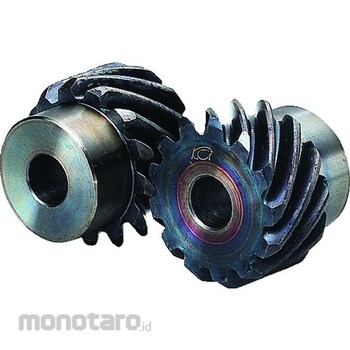

KG Helical Gears H1.5S13LMB 1pc
Rp339.900
Persediaan
Spesifikasi Produk
| Model Number | H1.5S13LMB |
|---|---|
| Unit | 1pc |
| Hole Diameter (mm) | φ10 |
| Hub Length (mm) | 10 |
| Hub Outer Diameter (mm) | φ23 |
| Material | S45C (carbon Steel for machine structure) |
| Module | 1.5 |
| Number of Teeth | 13 |
| Overall Length (mm) | 25 |
| Pressure Angle (°) | 20 |
| Reference Circle Diameter (mm) | φ27.58 |
| Shape | B1 |
| Tooth Profile | Normal teeth |
| Tooth Tip Circle Diameter (mm) | φ30.6 |
| Tooth Width (mm) | 15 |
| Twist Angle (°) | 45 |
| Twist direction | L |
| Berat (Kg) | 0.5 |
| Tanggal Produk Terdaftar | 23 April 2021 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
If the mating gear is used in combination with a product other than our company, problems may occur. For other items, please refer to the precautions for using helical gears described in the KG Gear Information in the KG General Catalog.Feature
Tooth induction hardening HRC47-53.Used for general industrial machinery, semiconductor manufacturing, food machinery, transport machinery, etc.
