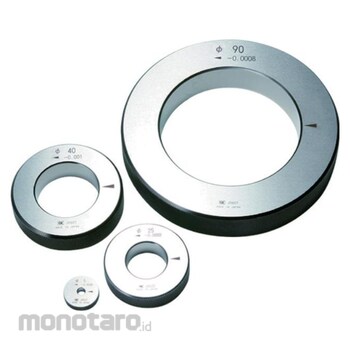

Master gauge for zero point adjustment of inner diameter measuring instrument.
It has undergone sub-zero treatment and stabilization treatment to prevent aging.
Inspection report included
Purpose:
As a master of internal diameter measuring instruments.
SK Setting Ring RG14.0 1pc
Rp1.399.900
Persediaan
Spesifikasi Produk
| Model Number | RG14.0 |
|---|---|
| Unit | 1pc |
| Nominal Size (mm) | 14 |
| Thickness (mm) | 10 |
| Outer Diameter (mm) | 38 |
| Hardness | 653 to 772HV |
| Inner Diameter Tolerance (µm) | ±1.0 (more than 1 to less than 30), ±1.5 (more than 30 to less than 50), ±2.0 (more than 50 to less than 100), ±5.0 (more than 100 to less than 200) |
| Parallelism | within 0.015mm |
| Roundness (µm) | within 0.5 (1 orore to 30 or less), 0.8 or less (over 30 to 50 or less) |
| Squareness | 0.05/Φ100 |
| Surface Roughness | within Ra0.1µm |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 29 January 2021 |
| Terakhir Diperbaharui | 10 June 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Use
As the master of the inner diameter measuring device.Ketentuan dan Kondisi Barang
