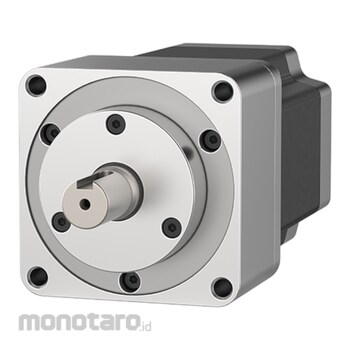

Autonics 5-Phase Stepper Motor&Drivers AK-G Series A200K-M599W-G10 1pc

Name: Autonics 5-Phase Stepper Motor&Drivers AK-G Series A200K-M599W-G10 1pc
Brand: Autonics
SKU: S023652996
Price: 5899900 IDR
Availability: OutOfStock

#Nomor SKU S023652996

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	A200K-M599W-G10
Unit	1pc
Basic Step Angle (Full/Half) (°)	0.072 /0.036
Max. Allowable Torque (kgf.cm)	200
Rotor Moment of Inertia (g/cm²)	2700
Winding Resistance (ohm)	2.6
Rated Current (A)	1.4/Phase
Motor Length (mm)	145
Shaft Type	Dual shaft
Reduction Ratio	0.048611111111
Wire Connection	Pentagon
Protection Structure	IP30
Allowable Speed Range (rpm)	0 to 180
Backlash (ft)	±35 (0.58˚)
Rated Excitation Voltage (V)	DC 24 ±10%(no-polarity)
Rated Excitation Current (A)	0.62
Static Friction Torque (kgf.cm)	40
Rotation Part Inertia Moment (kgf.cm²)	153x10-7
Brake B type Brake	Power on: brake is released, power off: brake is operating
Operating Time (ms)	Max. 15
Releasing Time (ms)	Max. 60
Berat (Kg)	4.8
Tanggal Produk Terdaftar	13 December 2020
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The AK-G series geared type 5-phase stepper motors are ideal for applications requiring high torque. The AK-G series offer great cost efficiency with its low, economical prices and are available in various frame sizes.

Warning

Motor length is measured without shaft.
Max. holding torque/Max. allowable torque is maintenance torque in stopping the motor when supply the rated current and is standard method for comparing the Performance of motors.
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.Image on this page only as Representative Image, Please check the specifications of each size and color for details
