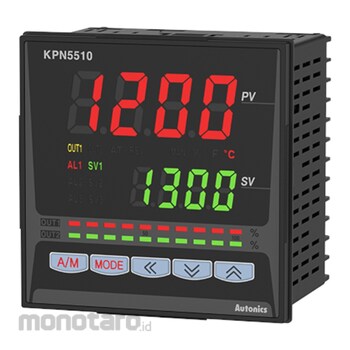

Autonics Panel Mount Temperature Controllers KPN Series KPN5513-230 1pc

The 1 output type is heating or cooling output type and the 2 output type is heating & cooling output type.
The 1 output type is able to use only one output among relay output, current output, SSR drive output.
OUT1 of the 2 output type is fixed as heating output and OUT2 of the 2 output type is fixed as cooling output.
If you select the SSR drive output or current output model, you can select the appropriate control output.
Displayaccuracy:
◎At room temperature (23℃±5℃)
ㆍTC K, J, T, N, E type, below -100℃ / L, U, PLⅡ, RTD Cu50, DPt50: (PV ±0.3% or ±2℃, select the higher one) ±1digit
ㆍTC C, G and R, S type, below 200℃: (PV ±0.3% or ±3℃, select the higher one) ±1digit
ㆍTC B type, below 400℃, there is no accuracy standards.
◎Out of room temperature range
ㆍRTD Cu50, DPt50: (PV 0.5% or ±3℃, select the higher one) ±1digit
ㆍRTD R, S, B, C, G: (PV ±0.5% or ±10℃, select the higher one) ±1digit
ㆍOther sensors: below -100℃, within ±5℃
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.Image on this page only as Representative Image, Please check the specifications of each size and color for details
