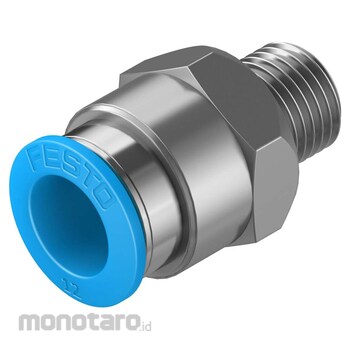

FESTO Push-in Fitting QS Series QS-1/4-12-20 1pack(2pcs)
Rp1.199.900
Persediaan
Spesifikasi Produk
| Model Number | QS-1/4-12-20 |
|---|---|
| Unit | 1pack(2pcs) |
| Size | Standard |
| Maritime Classification | See certificate |
| Nominal Width (mm) | 8.5 |
| Type Code | QS |
| Type of Seal on Screwed Trunnion | Coating |
| Mounting Position | Any |
| Packing Size | 20 |
| Design | Push-pull principle |
| Operating Pressure for Entire Temperature Range (bar) | -0.95 - 6 |
| Temperature-Dependent Operating Pressure (bar) | -0.95 - 14 |
| Operating Medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com |
| Information on Operating and Pilot Media | Operation with oil lubrication possible |
| Corrosion Resistance Class (CRC) | 1 - Low corrosion stress |
| Ambient Temperature (°C) | -10 - 80 |
| Product Weight (g) | 37 |
| Pneumatic Connection 1 | External thread R1/4 |
| Pneumatic Connection 2 | For pneumatic tubing outside diameter 12mm |
| Releasing Ring Color | Blue |
| Note on Materials | RoHS-compliant |
| Housing Material | Brass Nickel-plated |
| Berat (Kg) | 0.6 |
| Tanggal Produk Terdaftar | 17 November 2020 |
| Terakhir Diperbaharui | 27 May 2025 |
