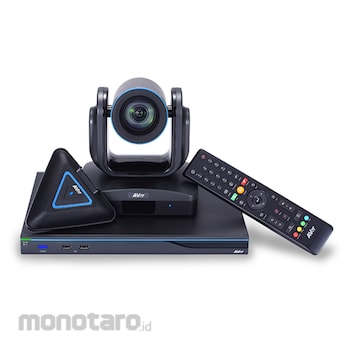

Aver Video Conference EVC950 HD1080 1unit

Name: Aver Video Conference EVC950 HD1080 1unit
Brand: Aver
SKU: S022453044
Price: 119999900 IDR
Availability: InStock

#Nomor SKU S022453044

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	EVC950 HD1080
Unit	1unit
Package Dimensions (mm)	376x300x243
Berat (Kg)	6.9
Tanggal Produk Terdaftar	17 November 2020
Terakhir Diperbaharui	29 December 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

10-site Embedded MCU, EZDraw and EZMeetup Collaboration
AVer’s EVC950 is the perfect video conferencing solution for large conference rooms and auditoriums. It provides a cost-effective way for businesses to connect up to 10 sites and enjoy full HD video and content sharing, offering an unbeatable return on investment. Users can connect to EVC950 calls from PCs, laptops, tablets and mobile phones via AVer’s EZMeetup software. Moreover, by using the EVC950 with AVer’s EZDraw collaborative annotation app users can access to an impressive array of interactive tools. The EVC950 is simple to set up, easy to operate and offers great interoperability across all brands. The EVC950 supports conferencing between up to 10 different locations at full HD 1080p resolution. This cost-effective embedded MCU provides smooth video streaming and is ideal for businesses that need high quality communication between multiple locations.

Specs:
Package Contents
Main system unit (codec)
The New eCam PTZ camera
EVC microphone array
IR remote control
Power supply (12V/5A)
VGA cable (3M)
Power cord (1.8M)
Camera cable (3M)
Microphone cable (5M)
Network cable (3M)
HDMI cable (3M)
Warranty card
Quick guide

Communications
H.323, SIP standards, SIP TLS
64Kbps~4Mbps
RJ45 network LAN (10/100/1000)
Manual bandwidth settings

Camera/The New eCam PTZ:
Pan/Tilt/Zoom camera
2-megapixel CMOS sensor
18X total zoom
±130° pan; +90°/-25° tilt
Field of view (H): 72°
Field of view (V): 43°
Field of view (Diagonal): 82°

People Video Resolutions
HD1080p (1920x1080)
HD720p (1280x720)
480p (848x480)
4CIF (704x576)
CIF (352x288)
SIF (352x240)
All resolutions at 30fps

Content Video Resolutions
Supported resolutions:
HD1080p (1920x1080)
WXGA+ (1680x1050)
SXGA (1280x1024)
WXGA (1280x768)
HD720p (1280x720)
XGA (1024x768)
SVGA (800x600)
D1 (720x480)
VGA (640x480)
Output resolutions:
HD1080p (1920x1080) up to 30fps

Video Standards
H.264, H.264 HP, H.264 SVC, H.263+, H.263, H.261
H.239 dual video streams
BFCP content sharing

Video Features
3D Denoise

Video Inputs
EVC eCam camera
VGA
DVI (HDMI)

Video Outputs
HDMI
VGA

Audio Standards
G.711, G.722, G.728, G.722.1, G.722.1C, AAC-LD

Audio Features
Automatic gain control (AGC)
Advanced noise reduction
Acoustic echo cancellation (AEC)

Audio Inputs
EVC microphone daisy chain up to 4
DVI (HDMI)
Line-in (3.5 mm)

Audio Outputs
HDMI
Line-out (3.5 mm)

Other Supported Standards
H.224, H.225, H.245, H.281, H.323 Annex Q, H.460
SRTP

User Interface
Multiple layout styles
User-friendly OSD (supports 23 languages: English, Traditional Chinese, Simplified Chinese, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Romanian, Russian, Spanish, Swedish, Thai, Turkish, Vietnamese)
Display/edit site name

Network
10/100/1000Mbps
NAT/firewall traversal
High Efficiency Lost Packet Recovery (HELPeR)
API support via Telnet
Wake-on-LAN (WOL) support
IPv4 and IPv6 support
Network Test
QoS

Security
AES (Advanced Encryption Standard) function (128-bit)
Password protection for system settings
Password protection for remote system management

Web Management Tool
Remote management through the Web
Live monitoring via the Web
Firmware update via Ethernet/Internet
Phonebook download/upload/edit
Restore system settings
Export call history

Value-Added Features
Meeting recording
In meeting and offline recording
Save directly to USB flash drive
Supports screen re-layout during playback
Playback and file conversion via VCPlayer software (.mov/.mp4 format)
EZMeetup software/App
30-day for free trial
Connect with H.264 video codec
Receive resolution up to full HD 1080p 30fps
Transmit resolution up to full HD 1080p 30fps
Support content sharing, capture and recording
EZDraw App
Compatible with EVC multipoints
Import .JPG, .PNG, .GIF and .BMP files
Export .PNG files
A maximum of 10 devices can be connected
Speed dialing via hot keys (10 sets)
Camera presets (100 positions)
Network Time Protocol (NTP)
ScreenShare support
VCLink support
SnapShot
Group Calling
Supports SIP voice calls

Power Supply
AC 100V~240V, 50/60Hz
Consumption: EIAJ 12V, 5A

Environmental Data
Operation temperature: 0°C~40°C
Operation humidity: 20%~80%
Storage temperature: -20°C~60°C
Storage humidity: 20%~80%

Feature

10 point embedded MCU
The EVC950 supports conferencing between up to 10 different locations at full HD 1080p resolution. This cost-effective embedded MCU provides smooth video streaming and is ideal for businesses that need high quality communication between multiple locations.

PTZ camera with 18X total zoom
The EVC950's powerful full HD PTZ camera offers 12X optical zoom plus 1.5X digital zoom, as well as +/-130° pan and +90°/-25° tilt, quick auto-focus and clear close-ups of participants, making it ideal for large conference rooms.

Voice activated layout switch
The EVC950's voice activated layout switch automatically enlarges the dominant speakers' image, making conferences more natural by clearly showing who has the floor and ensuring participants do not inadvertently interrupt each other.

One-touch recording
EVC950 video conferences can be recorded directly to a USB flash drive, including video, audio and shared content and regardless of whether the EVC950 is connected or offline, making keeping records of conferences supremely simple. Recorded conferences can be played back using an EVC950, or on PCs or laptops using AVer's VCPlayer software.

Annotate wherever & whenever you are
Using the EVC950 with AVer's EZDraw collaborative annotation app opens up powerful business communication possibilities. Users at different sites can write text, make highlights or draw on the same document, providing an ideal solution for improving the flow of discussions and achieving better mutual understanding.

Connect anywhere & anyplace
The EVC950 can connect up to 10 sites no matter where they are. AVer's mobility software EZMeetup makes possible video conferencing on PCs, laptops, mobile phones and tablets, so users can ensure all participants can join in important conferences with smooth video and clear audio no matter where they are.
