Aver Video Conference

Professional conferencing system for mid-to-large rooms

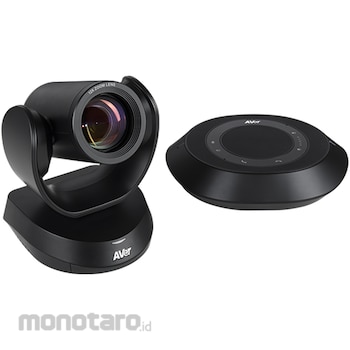

The VC520 Pro is equipped with a 12X optical zoom and daisy-chain speakerphone that deliver a lifelike audiovisual experience. With 1080p HD quality, Sony True WDR, and IP-based management features, the VC520 Pro is the professional conferencing system your enterprise needs.
Specs:
Camera
- Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions.
- Resolution: (16:9) 1920x1080, 1600x900, 1280x720, 960x540, 848x480, 800x448, 640x360, 424x240, 320x180; (4:3) 800x600, 640x480, 480x360, 320x240 at 60, 30, 15fps.
- SmartFrame for automatic FOV adjustment to fit all participants.
- True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions.
- Zoom: 18X total zoom (12X optical zoom).
- Wide field of view (DFOV): 82°.
- Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele).
- Lens F#: 1.8 (wide) ~ 2.8 (tele).
- Mirror, Flip, AE, white balance: aut o, manual override via PTZApp.
- Minimum focus distance: 1.5 m.
- Standard tripod screw holes and Kensington slot.

Motorized Pan & Tilt Movement
- Pan: ±170°
- Tilt: +90° (up) -30° (down)
- 10 camera presets (through remote control)
- Fast and quiet pan & tilt movement
Video Format
- YUV, MJPEG, H.264
- Network video compression format: H.264
- Network protocols: RTSP, RTMP

Speakerphone
- Full duplex microphone array with echo cancellation
- Advanced noise suppression
- Dual-microphone array
- 3.5 mm phone-in jack
- 3.5 mm line out
- Speaker: 6W, Adjustable to 90dB SPL at 0.5 m
- Microphone frequency response: 120Hz-16kHz
- Microphone sensitivity: -34± 2 dBV @1KHz, 94dBSPL
- Microphone distortion: < 1% from 150Hz
- Microphone support range: Diameter 6M
- Touch controls for volume down/up, mute, phone input, call, and hang-up
- Bridge phone-in and USB into one call
- Security: Kensington slot
Audio Format
- AAC-LC
- Network protocol: RTSP, RTMP

LAN
- 10/100/1000 Mbps
Connectivity
- 12V/5A power adaptor
- Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
- USB 3.1 Type-B connector
- IP (RJ45)

USB
- 3.1 Gen 1 Type-B, backward compatible with USB 2.0
- UVC (USB video class) 1.1
- UAC (USB audio class) 1.0
Control
- IR remote control
- VISCA/Pelco-P/Pelco-D via RS232 (128 preset points via VISCA command)
- Remote side: VISCA over IP, IP (RJ45)
- UVC/UAC plug-and-play
- WebUI: Browser IP access via Chrome (does not support Internet Explorer)
- PTZApp

Mount
- Camera wall-mount bracket included
- Optional foldable TV mount
System Requirements
- Windows 7/10
- Mac OS X 10.13 or higher
- Google Chromebook version 76.0.3809.102 or later
- Android 6 or higher

Hardware Specs
- 3.2 GHz Intel Core i5-4460 Processor or higher
- 4 GB RAM or more
- USB 3.1 port, backward compatible with USB 2.0 port
Web page browser requirement
- Chrome: version 76.x or above
- Firefox: version 69 or above
- IE: Not support

Power Supply
- AC 100V ~ 240V, 50/60 Hz
- Consumption: 12V, 5A
Free Applications for Meeting Collaboration (Windows and Mac)
- EZManager: Camera Central Management software
- Remotely group FW/SW upgrades, control the camera, and configure settings
- PTZApp
- Upgrade firmware automatically or manually
- Control camera
- Set parameters and adjust camera image
- Diagnose operating status
- View live video
- EZLive
- Real-time streaming/annotating/snapshots/video recording

Optional Accessories
- Mini DIN9 to RS232 adapter
- Expansion Speakerphone (10 m cable included, daisy-chain up to three speakerphones)
- Expansion Pair Microphone (Two 5 m cables included, daisy-chain up to four microphones)
- Foldable TV mount
Compatible Applications
Zoom, Microsoft Teams, Skype for Business, Skype, Google Hangouts meet, Intel Unite, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting, TrueConf, Adobe Connect, Cisco Webex, Fuze, GoToMeeting, Microsoft Lync, Vidyo, vMix, WebRTC, Wirecast, XSplit
