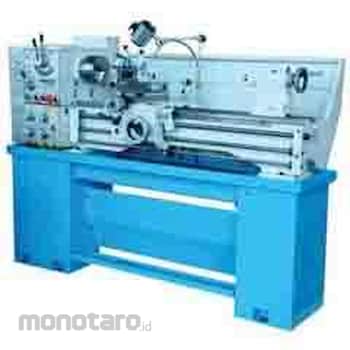

KRISBOW Mesin Bubut LM3610BA 360x1000mm 1pc

Name: KRISBOW Mesin Bubut LM3610BA 360x1000mm 1pc
Brand: KRISBOW
SKU: S018027426
Price: 119999900 IDR
Availability: OutOfStock

#Nomor SKU S018027426

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	LM3610BA
Unit	1pc
Main Motor Power (kW/V/Ph)	1.5/380/3
Coolant Motor (W/V/Ph)	90 /380/3
Max. Swing Over Bed (mm)	360
Max. Swing Over Cross Slide (mm)	220
Max. Swing In Gap (mm)	540
Distance Between Center (mm)	1000
Bed Width (mm)	206
Spindle Bore (mm)	38
Taper of Spindle Bore	45-1800
Spindle Speed (Step)	16
Longitudinal Feed (mm/rev)	1.043-0.653
Longitudinal Scale (mm) (inch)	0.15
Cross Feed (mm/rev)	0.027-0.413
Compoundrest Scale (mm)	0.04
Dimensions (LxWxH) (mm)	1820x750x1300
Crossfeed Scale (mm)	0.04
Metric Thread (mm)	0.4-7
Tool Shank (mm)	16x16
Cross Slide Width (mm)	205
Type	Bench Lathe Machine
Thread per Inch	4-112
Berat (Kg)	165.0
Tanggal Produk Terdaftar	06 September 2020
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Bench Lathe Machine 360 x 1000mm
Standard Accessories :
- 3 jaws chuck
- 4 jaws chuck
- Face plate
- Collant system
- Changeable gear set
- Steady rest
- Follow rest
- Dead center

Peringatan

Untuk mengaktifkan garansi produk ini, silakan kunjungi link berikut ini: https://prodreg.klgsys.com/en/product-registration/creation/KWI

Feature

Bench Lathe Machine 360 x 1000mm
- Complete with DRO
- Pedal for breaking system
- Tailstok sleeve and handwheel with adjustable precission scale
- Safety switch in chuck guard
