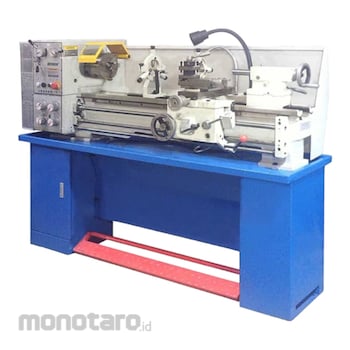

KRISBOW Mesin Bubut LM3210BA 320x1000mm 1pc

Name: KRISBOW Mesin Bubut LM3210BA 320x1000mm 1pc
Brand: KRISBOW
SKU: S018009125
Price: 83999900 IDR
Availability: InStock

#Nomor SKU S018009125

KRISBOW

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	LM3210BA
Unit	1pc
Main Motor Power (kW/V/Ph)	1.5/380/3
Coolant Motor (W/V/Ph)	50 /380/3
Max. Swing Over Bed (mm)	320
Max. Swing Over Cross Slide (mm)	198
Max. Swing In Gap (mm)	476
Distance Between Center (mm)	1000
Bed Width (mm)	187
Spindle Bore (mm)	38
Taper of Spindle Bore	MT5
Spindle Speed (rpm)	70-2000
Spindle Speed Step (Step)	18
Longitudinal Feed (mm/rev)	0.091-2.553
Longitudinal Scale (mm) (inch)	0.5 (0.02)
Cross Feed (mm/rev)	1025-0.690
Compoundrest Scale (mm)	0.02 (0.001inch)
Crossfeed Scale (mm)	0.04 (0.002inch)
Metric Thread (mm)	0.4-7
Tool Shank (mm)	16x16
Dimensions (LxWxH) (mm)	1770x580x1270
Type	Bench Lathe Machine
Thread per Inch	4-60
Berat (Kg)	135.3
Tanggal Produk Terdaftar	06 September 2020
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Bench Lathe Machine 320 x 1000mm
Standard Accessories :
- 3 jaws chuck
- 4 jaws chuck
- Face plate
- Collant system
- Changeable gear set
- Steady rest
- Follow rest
- Dead center

Peringatan

Untuk mengaktifkan garansi produk ini, silakan kunjungi link berikut ini: https://prodreg.klgsys.com/en/product-registration/creation/KWI

Feature

Bench Lathe Machine 320 x 1000mm
- Complete with DRO
- Pedal for breaking system
- Tailstok sleeve and handwheel with adjustable precission scale
- Safety switch in chuck guard
