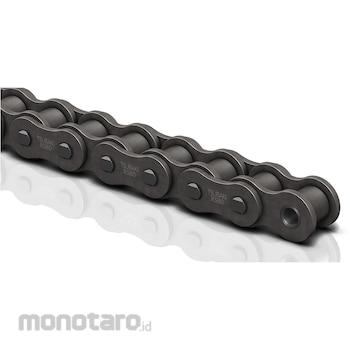

TSUBAKI RS60 Series-Standard Drive Chain RS60-3-RP-U 1box

Name: TSUBAKI RS60 Series-Standard Drive Chain RS60-3-RP-U 1box
Brand: TSUBAKI
SKU: S017238069
Price: 4699900 IDR
Availability: InStock

#Nomor SKU S017238069

TSUBAKI

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	RS60-3-RP-U
Unit	1box
No. of Strands	3
Dimension L1 (mm)	35.65
Dimension L2 (mm)	38.15
Offset Pin Length L (mm)	75.5
Corresponding Chain Numbers	60.0
Transverse Pitch C (mm)	22.8
JIS Tensile Strength (kN/kgf)	93.9/9576
Min. Tensile Strength (kN/kgf)	121/12300
Max. Allowable Tension (kN/kgf)	22.1/2250
No. of Links per Unit	160
Type	Rivet Pin
Berat (Kg)	4.5
Tanggal Produk Terdaftar	26 August 2020
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Introducing the next generation G8 Series Roller Chain incorporating Tsubaki fundamental technology.
ISO ANSI standard roller chain.
1.2 times longer wear life over G7-EX thanks to the development of a rust preventative pre-lube that minimizes tackiness.
Sizes under RS35 are the same as conventional models.

Feature

Drastically improved wear life
Tsubaki developed a seamless solid bush using our unique processing expertise.
The high-precision solid bush and special lube grooves increase the retention of lubricant and doubles the wear life.
Tsubaki developed a rust preventative pre-lube that minimizes tackiness, a common request from our customers. The new G8 Series also has 1.2 times longer wear life than G7.
Lube groove solid bushes are only available for RS80 to RS140.
Generally RS Roller Chains are stocked by unit. A connecting link is included with one unit of chain. Please order additional connecting links if dividing or extending the chain.
Assembled products
Chain can be delivered at the length the customer desires.
Please calculate the chain length to determine the number of links required before ordering.
