51111
Thrust ball bearings, single direction
Bearing data
- Tolerances: table 1
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

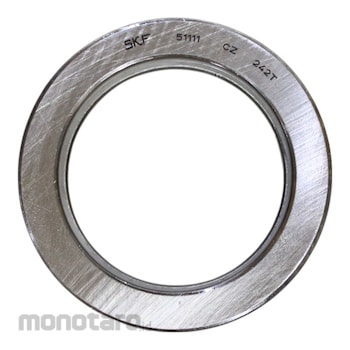

SKF Thrust Ball Bearings 51111 Single Direction 1pc
Rp379.900
Persediaan
Spesifikasi Produk
| Model Number | 51111 |
|---|---|
| Unit | 1pc |
| Bore Diameter d (mm) | 55 |
| Outside Diameter D (mm) | 78 |
| Height H (mm) | 16 |
| Basic Dynamic Load Rating C (kN) | 30.2 |
| Basic Static Load Rating C0 (kN) | 81.5 |
| Reference Speed (rpm) | 3800 |
| Limiting Speed (rpm) | 5300 |
| Axial Load Capability | Single-direction |
| Number of Rows | 1 |
| Cage | Sheet metal |
| Housing Washer Type | Flat |
| Tolerance Class | Normal |
| Bearing Material | Bearing steel |
| Coating | Without |
| Outside Diameter Shaft Washer d1 (mm) | ≈ 78 |
| Inner Diameter Housing Washer D1 (mm) | ≈ 57 |
| Chamfer Dimension Washer r1,2 (mm) | min. 0.6 |
| Abutment Diameter Shaft da Min (mm) | min. 69 |
| Abutment Diameter Housing Da Max (mm) | max. 64 |
| Fillet Radius ra (mm) | max. 0.6 |
| Fatigue Load Limit Pu (kN) | 3 |
| Minimum Load Factor (A) | 0.039 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 31 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image may differ from product. See technical specification for details.Dokumentasi Produk
