32024 X
Tapered roller bearings, single row
Bearing data
- Tolerances:
metric bearings: Normal and CL7C, CLN
inch bearings: Normal and CL, deviating width
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

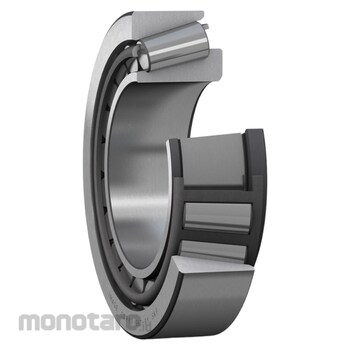

SKF Single Row Tapered Roller Bearings 32024 X 1pc
Rp1.699.900
Persediaan
Spesifikasi Produk
| Model Number | 32024 X |
|---|---|
| Unit | 1pc |
| Bore Diameter d (mm) | 120 |
| Outside Diameter D (mm) | 180 |
| Total Width T (mm) | 38 |
| Width of Inner Ring B (mm) | 38 |
| Width of Outer Ring C (mm) | 29 |
| Contact Angle (°) | 17 |
| Basic Dynamic Load Rating C (kN) | 299 |
| Basic Static Load Rating C0 (kN) | 415 |
| Reference Speed (rpm) | 2800 |
| Limiting Speed (rpm) | 3400 |
| SKF Performance Class | SKF Explorer |
| Bearing Part | Complete bearing |
| Number of Rows | 1 |
| Locating Feature, Bearing Outer Ring | None |
| Bore Type | Cylindrical |
| Cage | Sheet metal |
| Arrangement of Contact Angle (double-row bearing) | Not applicable |
| Matched Arrangement | No |
| Coating | Without |
| Sealing | Without |
| Lubricant | None |
| Relubrication Feature | Without |
| Shoulder Diameter of Inner Ring d1 (mm) | ≈ 150.67 |
| Chamfer Dimension of Inner Ring r1,2 (mm) | min. 2.5 |
| Chamfer Dimension of Outer Ring r3,4 (mm) | min. 2 |
| Distance Side Face to Pressure Point a (mm) | 38.8 |
| Diameter of Shaft Abutment da Max (mm) | max. 132 |
| Diameter of Shaft Abutment db (mm) | min. 133 |
| Diameter of Housing Abutment Da Min (mm) | min. 161 |
| Diameter of Housing Abutment Da Max (mm) | max. 169 |
| Diameter of Housing Abutment Db Min (mm) | min. 173 |
| Minimum Width Of Space Required in Housing on Large Side Face (mm) | min. 7 |
| Minimum Width Of Space Required In Housing On Small Side Face Cb (mm) | min. 9 |
| Radius of Shaft Fillet ra (mm) | max. 2.5 |
| Radius of Housing Fillet rb (mm) | max. 2 |
| Fatigue Load Limit Pu (kN) | 42.5 |
| Limiting Value (e) | 0.46 |
| Berat (Kg) | 1.2 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 21 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image may differ from product. See technical specification for details.Feature
- High radial and axial load carrying capacity- Accommodate axial loads in one direction
- Low friction and long service life
- Separable and interchangeable components
