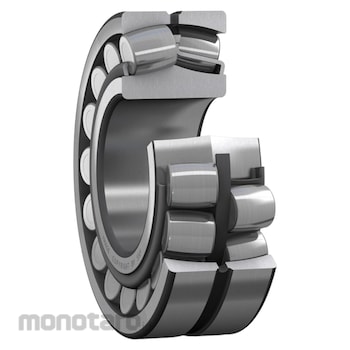

SKF E/C3 Type Spherical Roller Bearings 22316 E/C3 with Relubrication Features 1pc

Name: SKF E/C3 Type Spherical Roller Bearings 22316 E/C3 with Relubrication Features 1pc
Brand: SKF
SKU: S017198097
Price: 3699900 IDR
Availability: InStock

#Nomor SKU S017198097

SKF

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	22316 E/C3
Unit	1pc
Bore Diameter d (mm)	80
Outside Diameter D (mm)	170
Width B (mm)	58
Basic Dynamic Load Rating C (kN)	516
Basic Static Load Rating C0 (kN)	540
Reference Speed (rpm)	3000
Limiting Speed (rpm)	4000
SKF Performance Class	SKF Explorer
Number of Rows	2
Locating Feature, Bearing Outer Ring	Without
Bore Type	Cylindrical
Cage	Sheet metal
Radial Internal Clearance	C3
Tolerance Class for Dimensions	Normal
Tolerance Class for Run-out	P5
Sealing	Without
Lubricant	None
Relubrication Feature	With
Berat (Kg)	1.2
Tanggal Produk Terdaftar	26 August 2020
Terakhir Diperbaharui	21 July 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

Warning

Image may differ from product. See technical specification for details.

Feature

- Accommodate misalignment
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
