2205 E-2RS1KTN9
Popular item
Self-aligning ball bearings
Bearing data
- Tolerances: Normal, JS7
- Radial internal clearance: table
Bearing interfaceS
- Seat tolerances for standard conditions
- Tolerances and resultant fits

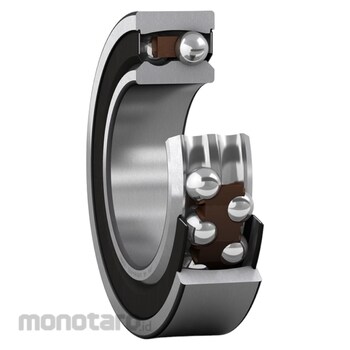

SKF E-2RS1KTN9 Type Self-Aligning Ball Bearings 2205 E-2RS1KTN9 with Tapered Bore and Seals on Both Sides 1pc
Rp449.900
Persediaan
Spesifikasi Produk
| Model Number | 2205 E-2RS1KTN9 |
|---|---|
| Unit | 1pc |
| Bore Diameter d (mm) | 25 |
| Outside Diameter D (mm) | 52 |
| Width B (mm) | 18 |
| Basic Dynamic Load Rating C (kN) | 14.3 |
| Basic Static Load Rating C0 (kN) | 4 |
| Reference Speed (rpm) | 26000 |
| Limiting Speed (rpm) | 9000 |
| Retaining Feature, Inner Ring | None |
| Locating Feature, Bearing Outer Ring | None |
| Number of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Cage | Non-metallic |
| Radial Internal Clearance | CN |
| Tolerance Class | Normal |
| Bearing Material | Bearing steel |
| Coating | Without |
| Sealing | Seal on both sides |
| Sealing Type | Contact |
| Lubricant | Grease |
| Relubrication Feature | Without |
| Berat (Kg) | 1.2 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image may differ from product. See technical specification for details.Feature
- Ease of mounting via adapter/withdrawal sleeves- Accommodate static and dynamic misalignment
- Excellent high-speed and light load performance
- Low friction
- Integral sealing results in reduced maintenance requirements and prolonged bearing service life
