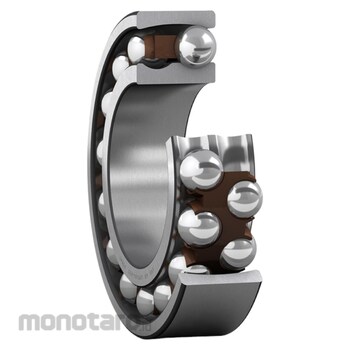

SKF TN9 Type Self-Aligning Ball Bearings 129 TN9 1pc

Name: SKF TN9 Type Self-Aligning Ball Bearings 129 TN9 1pc
Brand: SKF
SKU: S017195539
Price: 239900 IDR
Availability: OutOfStock

#Nomor SKU S017195539

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	129 TN9
Unit	1pc
Bore Diameter d (mm)	9
Outside Diameter D (mm)	26
Width B (mm)	8
Basic Dynamic Load Rating C (kN)	3.9
Basic Static Load Rating C0 (kN)	0.815
Reference Speed (rpm)	60000
Limiting Speed (rpm)	38000
Retaining Feature, Inner Ring	None
Locating Feature, Bearing Outer Ring	None
Number of Rows	2
Bore Type	Cylindrical
Cage	Non-metallic
Radial Internal Clearance	CN
Tolerance Class	Normal
Bearing Material	Bearing steel
Coating	Without
Sealing	Without
Lubricant	None
Relubrication Feature	Without
Shoulder Diameter Inner Ring d1 (mm)	≈ 14.8
Shoulder Diameter Outer Ring D1 (mm)	≈ 20.4
Chamfer Dimension r1,2 (mm)	min. 0.3
Abutment Diameter Shaft da Min (mm)	min. 11.4
Abutment Diameter Housing Da Max (mm)	max. 23.6
Fillet Radius ra (mm)	max. 0.3
Fatigue Load Limit Pu (kN)	0.043
Permissible Angular Misalignment α (°)	3
Limiting Value (e)	0.33
Berat (Kg)	1.2
Tanggal Produk Terdaftar	26 August 2020
Terakhir Diperbaharui	21 July 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

129 TN9
Self-aligning ball bearings
Bearing data
- Tolerances: Normal, JS7
- Radial internal clearance: table
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fits

Warning

Image may differ from product. See technical specification for details.

Feature

- Accommodate static and dynamic misalignment
- Excellent high-speed performance
- Excellent light load performance
- Low friction
