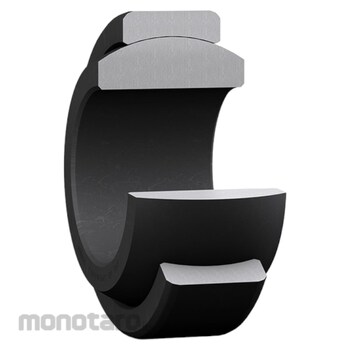

SKF Radial Spherical Plain Bearing Tipe GE E GE 12 E 1pc
Harga spesial Rp56.000 Harga normal Rp149.900
Persediaan
Diskon 62%
Promo
Spesifikasi Produk
| Model Number | GE 12 E |
|---|---|
| Unit | 1pc |
| Bore Diameter d (mm) | 12 |
| Outside Diameter D (mm) | 22 |
| Width, Inner Ring (mm) | 10 |
| Width Outer Ring C (mm) | 7 |
| Basic Dynamic Load Rating C (kN) | 10.8 |
| Basic Static Load Rating C0 (kN) | 54 |
| Sliding Contact Surface Combination | Steel/steel, standard |
| Material, Inner Ring | Bearing steel |
| Material, Outer Ring | Bearing steel |
| Maintenance | Relubrication required |
| Radial Internal Clearance | CN |
| Sealing | Without |
| Relubrication Feature | Without |
| Width B (mm) | 10 |
| Angle Of Tilt α (°) | 10 |
| Raceway Diameter Inner Ring dk (mm) | 18 |
| Chamfer Dimension Bore r1 (mm) | min. 0.3 |
| Chamfer Dimension Outer Ring r2 (mm) | min. 0.3 |
| Abutment Diameter Shaft da Min (mm) | min. 13.8 |
| Abutment Diameter Shaft da Max (mm) | max. 15 |
| Abutment Diameter Housing Da Min (mm) | min. 17.1 |
| Abutment Diameter Housing Da Max (mm) | max. 20.4 |
| Fillet Radius Shaft ra (mm) | max. 0.3 |
| Fillet Radius Housing rb (mm) | max. 0.3 |
| Specific Dynamic Load Factor (N/mm²) | 100 |
| Specific Static Load Factor (N/mm²) | 500 |
| Material Constant | 330 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 02 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image may differ from product. See technical specification for details.Feature
- Designed for radial and combined radial and axial loads- Suitable for heavy static, alternating or impact loads
