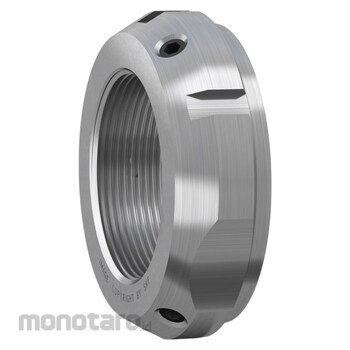

SKF Mur Pengunci Presisi KMT 19 with Locking Pins 1pc
Rp2.499.900
Persediaan
Spesifikasi Produk
| Model Number | KMT 19 |
|---|---|
| Unit | 1pc |
| Thread Designation | M95x2 |
| Bore Diameter (mm) | 95 |
| Outside Diameter d3 (mm) | 130 |
| Width B (mm) | 32 |
| Locking Device | Incorporated in the lock nut |
| Nut for Hydraulic Mounting | No |
| Associated Mounting Tool | HN 18-20 |
| Berat (Kg) | 1.2 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
KMT precision lock nuts are intended for applications where high precision, simple assembly and reliable locking are required. The three equally-spaced locking pins enable these lock nuts to be accurately positioned at right angles to the shaft. However, they can also be adjusted to compensate for slight angular deviations of adjacent components. Maximum axial run-out between the locating face and thread (up to size 40): 0.005 mm
Warning
Image may differ from product. See technical specification for details.Feature
- No keyway required- Withstands high axial loads
- Reliable, effective locking mechanism
- Designed for frequent and simple installation and removal
- Available for thread M 10x0.75 to M 200x3 (sizes 0 to 40) and Tr 220x4 to Tr 420x5 (sizes 44 to 84)
