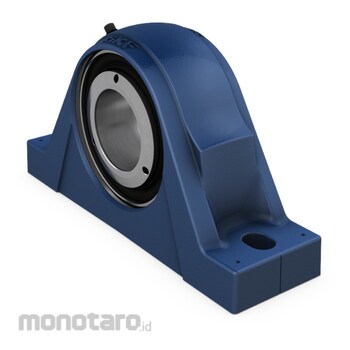

SKF Metric Roller Bearing Units SYNT 60 L Pillow Block, Two-Bolt, ConCentra Locking 1pc
Rp5.699.900
Persediaan
Spesifikasi Produk
| Model Number | SYNT 60 L |
|---|---|
| Unit | 1pc |
| Shaft Diameter da (mm) | 60 |
| Centre Height (pillow block) (mm) | 80 |
| Housing Overall Width (mm) | 80 |
| Centre Distance Between Bolt Holes (mm) | 230 |
| Attachment Bolt Diameter (mm) | 16 |
| Bearing Width, Total (mm) | 70 |
| Basic Dynamic Load Rating C (kN) | 156 |
| Basic Static Load Rating C0 (kN) | 166 |
| Limiting Speed (rpm) | 2900 |
| Housing Type | Pillow block |
| Number of Bolt Holes for Fasteners | 2 |
| Bearing Insert | Spherical roller bearing |
| Retaining Feature, Inner Ring | SKF ConCentra |
| Bearing Position | Non-locating |
| Bore Type | Cylindrical |
| Material, Housing | Cast iron |
| Bearing Material | Bearing steel |
| Coating | Without |
| Bearing Housing Seal Type | Radial lip seal |
| Sealing, Unit | Optional end cover |
| Lubricant | Grease |
| Relubrication Hole | With |
| Grease Fitting | With |
| Collar Outer Diameter d2 (mm) | 86 |
| Housing Foot Width A (mm) | 80 |
| Inner Ring Width B (mm) | 70 |
| Height Base to Center H (mm) | 80 |
| Housing Foot Height H1 (mm) | 30 |
| Housing Height H2 (mm) | 151 |
| Distance of Attachment Bolts J (mm) | 230 |
| Housing Length L (mm) | 275 |
| Width Foot Slot Width N (mm) | 18 |
| Length of Attachment Bolt Hole N1 (mm) | 24 |
| Axial Displacement S (mm) | 2.5 |
| Distance Bearing Centre Line to End Cover A4 (mm) | 73 |
| Distance Bearing Centre Line to Shaft End ba Max (mm) | max. 65 |
| Distance Bearing Centre Line to Shaft End ba Min (mm) | min. 38 |
| Distance Dowel Pins J6 (mm) | 254 |
| Distance Dowel Pins J7 (mm) | 29 |
| Pin Hole Diameter N4 (mm) | 8 |
| Fatigue Load Limit Pu (kN) | 18.6 |
| Limiting Value (e) | 0.24 |
| Bearing Mean Diameter dm (mm) | 85 |
| Axial Holding Force Of The Locking Mechanism Pa (kN) | 15 |
| Breaking Load P0° (kN) | 270 |
| Breaking Load P55° (kN) | 365 |
| Breaking Load P90° (kN) | 220 |
| Breaking Load P120° (kN) | 150 |
| Breaking Load P150° (kN) | 130 |
| Breaking Load P180° (kN) | 170 |
| Attachment Bolt Diameter G (mm) | 16 |
| Tightening Torque for Attachment Bolts (N m) | 200 |
| Set Screws | M6 |
| Number of Set Screws | 3 |
| Tightening Torque for Set Screws (N m) | 8 |
| Grease Quantity for Relubrication (g) | 6 |
| End Cover | ECY 212 |
| Berat (Kg) | 1.2 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Pillow (plummer) block roller bearing units and take-up roller bearing units consist of a spherical or tapered roller bearing mounted in a non-split housing that can be bolted to a support surface. This variant has a spherical roller bearing, a two-bolt base and SKF ConCentra locking, creating a true concentric tight fit, and setting the correct internal clearance within the bearing. The units are sealed and lubricated and ready to use. This bearing unit covers a wide range of requirements, in metric dimensions.
Warning
Image may differ from product. See technical specification for details.Feature
- Ready to mount- Robust
- Factory lubricated and sealed
- Quick mounting
- Long service life
