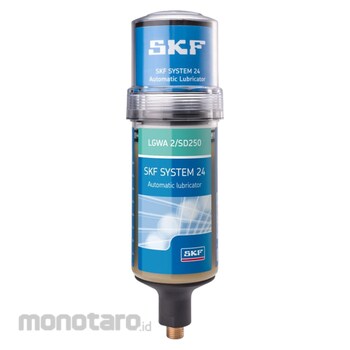

SKF Electro-Mechanical Single Point Automatic Lubricators TLSD 250/WA2 1pc
Rp2.099.900
Persediaan
Spesifikasi Produk
| Model Number | TLSD 250/WA2 |
|---|---|
| Unit | 1pc |
| Lubricant Quantity (ml) | 250 |
| Nominal Emptying Time (month) | User adjustable: 1, 2, 3, 4, 6, 8, 10 and 12 |
| Lowest Dispense Setting (ml/d) | 0.7 |
| Highest Dispense Setting (ml/d) | 8.3 |
| Drive Mechanism | Electro Mechanical |
| Maximum Pressure (bar) | 5 |
| Maximum Feed Line Length (m) | 3 |
| Degree of Protection (IP) | IP 65 |
| Lubricant | LGWA 2 |
| Lubricant Description | Wide temperature range, extreme pressure, high load bearing grease |
| Lubricant Temperature Range (°C) | -30 to +140 |
| Ambient Temperature Range (°C) | 0-50 |
| Recommended Applications | Fans and electric motorsConveyor head and tail pulley bearings |
| Connecting Thread | G 1/4 |
| Battery | Battery pack, TLSD 1-BAT |
| Battery Capacity (AH) | 2.7 |
| Battery Type | Alkaline manganese |
| Battery Voltage (V) | 4.5 |
| Power Source | Battery pack |
| LED Indicator | Green LED (every 30 sec): OKYellow LED (every 30 sec): Pre-warning low battery powerYellow LED (every 5 sec): Pre-warning high back pressureRed LED (every 5 sec): Warning, stopped on errorRed LED (every 2 sec): Warning, empty cartridge |
| Berat (Kg) | 1.0 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
TLSD 250/WA2 is filled with SKF LGWA 2 grease for wide temperature ranges and extreme pressures, recommended for electric motors, conveyors, fans and pumps. Our electro-mechanical single point automatic lubricators are available in many configurations, pre-filled with SKF lubricants, both as battery or cable driven. Using automatic lubricators improves employee safety, increases machine reliability and optimizes maintenance operations.
Warning
Image may differ from product. See technical specification for details.Feature
- Flexible dispense rate from 1 to 12 months- Maximum discharge pressure of 5 bar during the dispensing period
- LED status indicators
- Compact size allows installation in restrictive areas
- Suitable for both direct and remote installation
- Supplied with support flange for enhanced sturdiness
