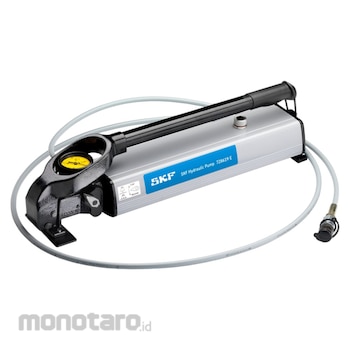

Hydraulic pump 150 MPa
150 MPa - (21 750 psi)
The 728619 E is a two-stage pump suitable for use with SKF Supergrip bolts and for the mounting and dismounting of bearings or components where a maximum pressure of 150 MPa (21 750 psi) is required. The pump is supplied with a 3 000 mm (118 in.) pressure hose, quick connect coupling and mating nipple and pressure gauge. The pump is filled with SKF Mounting fluid LHMF 300, is supplied with an extra litre and is protected in a sturdy metal case.
Features & benefits
- Oil container capacity 2 400 cm³ (146.5 in.³)
- Two stage pressure pumping
- Fitted with a pressure gauge
- Packed in a sturdy protective case
Applications
- SKF Supergrip bolts
- Oil injection applications where the maximum pressure is 150 MPa (21 750 psi)
- All sizes SKF hydraulic nuts
SKF Hydraulic Pump 728619 E 150Mpa 1pc
Rp61.999.900
Persediaan
Spesifikasi Produk
| Model Number | 728619 E |
|---|---|
| Unit | 1pc |
| Dimensions (WxLxH) (mm) | 130x620x170 |
| Case Dimensions (LxHxW) (mm) | 753x190x330 |
| Maximum Pressure (bar) | 1500 |
| Maximum Pressure (MPa) | 150 |
| Type | Hand operated pump |
| Recommended Applications | SKF Supergrip boltsOil injection applications where the maximum pressure is 150 MPa (21 750 psi)All sizes SKF hydraulic nuts |
| Type of Pump | Two-stage |
| Volume per Stroke 1st Stage (cm³) | 20, below 2.5 MPa |
| Volume per Stroke 2nd Stage (cm³) | 1, above 2.5 MPa |
| Oil Container Capacity (ml) | 2400 |
| Pressure Gauge | Yes, analogue |
| Hose Length (mm) | 3000 |
| Filled with Oil | Yes, with SKF Mounting Fluid LHMF 300 |
| Handle Force at Maximum Oil Pressure (N) | 370 |
| Connection Nipple | G 1/4 (male) |
| Suitable for Drive Up Method | No |
| Suitable for Hydraulic Nut HMV Range | 9-200 |
| Housing Material | Aluminium pump body |
| Colour | GreyBlack |
| Operating Temperature Range (°C) | 10-35 |
| Relative Humidity (%RH) | 0 to 75, non-condensing |
| Kandungan | Pump with mounting fluidpressure hosequick connection couplingquick connection nipplepressure gaugemetal case1l can of mounting fluid |
| Volume per Stroke (cm³) | 1st stage: 20 below 2.5 MPa2nd stage: 1 above 2.5 Mpa |
| Berat (Kg) | 1.0 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 21 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image may differ from product. See technical specification for details.Feature
- Oil container capacity 2550 cm³ (155 in³)- Two stage pressure pumping
- Fitted with a pressure gauge
- Supplied with an extra litre of fluid
- Packed in a sturdy protective case
