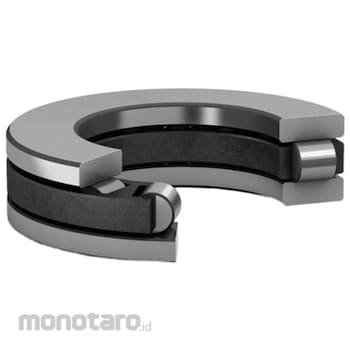

SKF Single Row Cylindrical Roller Thrust Bearing 81109 TN Single Direction 1pc

Name: SKF Single Row Cylindrical Roller Thrust Bearing 81109 TN Single Direction 1pc
Brand: SKF
SKU: S017157308
Price: 809900 IDR
Availability: InStock
Rating: 100 (1 reviews)

#Nomor SKU S017157308

Wishlist

Rating:

100% of 100

(1)

1 Ulasan

Spesifikasi Produk

Model Number	81109 TN
Unit	1pc
Bore Diameter d (mm)	45
Outside Diameter D (mm)	65
Height H (mm)	14
Basic Dynamic Load Rating C (kN)	45
Basic Static Load Rating C0 (kN)	153
Reference Speed (rpm)	2200
Limiting Speed (rpm)	4500
Bearing Part	Complete bearing
Axial Load Capability	Single-direction
Shaft Washer	WS 81109
Housing Washer	GS 81109
Number of Rows	1
Cage	Non-metallic
Tolerance Class	Normal
Bearing Material	Bearing steel
Coating	Without
Outside Diameter Shaft Washer d1 (mm)	65
Bore Diameter Housing Washer D1 (mm)	47
Height Shaft Washer B (mm)	4
Chamfer Dimension Housing Washer r1,2 (mm)	min. 0.6
Abutment Diameter Shaft da Min (mm)	min. 63
Abutment Diameter Housing Da Max (mm)	max. 47
Fillet Radius ra (mm)	max. 0.6
Fatigue Load Limit Pu (kN)	15.3
Minimum Axial Load Factor (A)	0.00187
Roller and Cage Thrust Assembly	K 81109 TN
Berat (Kg)	1.2
Tanggal Produk Terdaftar	26 August 2020
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Bearing data, Design considerations
- Tolerances: table, table, values
- Design considerations: table

Bearing interfaces
- Seat tolerances for standard conditions

Warning

Image may differ from product. See technical specification for details.

Feature

- High axial load carrying capacity
- High stiffness
- Long service life
- Require little axial space
- Separable design
