NUKR 52 A
Popular item
Cam followers
Bearing data
- Tolerances: Normal, Other
- Radial internal clearance: table
Bearing interfaces
- Seat tolerances for standard conditions
- Tolerances and resultant fit

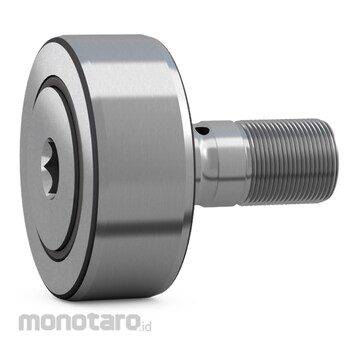

SKF Cam Follower NUKR 52 A with Integral Sealing and Relubrication Feature 1pc
Rp1.499.900
Persediaan
Spesifikasi Produk
| Model Number | NUKR 52 A |
|---|---|
| Unit | 1pc |
| Functional Outside Diameter (mm) | 52 |
| Stud Diameter (mm) | 20 |
| Length (mm) | 66 |
| Width Outer Ring C (mm) | 24 |
| Basic Dynamic Load Rating C (kN) | 29.7 |
| Basic Static Load Rating C0 (kN) | 36 |
| Limiting Speed (rpm) | 3200 |
| Rolling Elements | Cylindrical rollers |
| Number of Rows | 2 |
| Outer Ring Profile | Crowned |
| Stud Alignment | Centric |
| Number of Flanges, Outer Ring | 2 |
| Feature for Tightening | Hexagonal recess |
| Cage | Without |
| Radial Internal Clearance | Between C2 and CN |
| Tolerance Class | Other |
| Bearing Material | Bearing steel |
| Coating | Without |
| Sealing | Seal on both sides |
| Sealing Type | Labyrinth |
| Lubricant | Grease |
| Relubrication Feature | Centre of each stud end and radial hole in stud shank |
| Outside Diameter D (mm) | 52 |
| Attachment Diameter d (mm) | 20 |
| Total Length B (mm) | 66 |
| Length Shank On Stud B1 (mm) | 40.5 |
| Distance Lubrication Hole to Flange Ring B2 (mm) | 9 |
| Distance Face Outer Ring to Face Side Washer C1 (mm) | 0.8 |
| Outside Diameter Flange Ring d1 (mm) | 31 |
| Thread Stud G | M20x1.5 |
| Length Thread G1 (mm) | 21 |
| Seat Diameter for Lubrication Accessories M (mm) | 6 |
| Diameter of Lubrication Hole (shank) M1 (mm) | 4 |
| Width Across Flats SW (mm) | 10 |
| Chamfer Dimension r1,2 (mm) | min. 1 |
| Fatigue Load Limit Pu (kN) | 4.25 |
| Maximum Dynamic Radial Loads Fr (kN) | max. 18 |
| Maximum Static Radial Loads F0r (kN) | max. 25.5 |
| Recommended Tightening Torque (N m) | 120 |
| Grease Fitting | NIP A2x7.5 |
| Hexagonal Nut | M 20x1.5 |
| Lubrication Adapter | AP 10 |
| Berat (Kg) | 1.2 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 21 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image may differ from product. See technical specification for details.Feature
- High radial load carrying capacity- Accommodate relatively heavy axial loads due to skew or tilting
- Long service life
- Easy to mount
- Sealed for increased reliability, with relubrication feature
