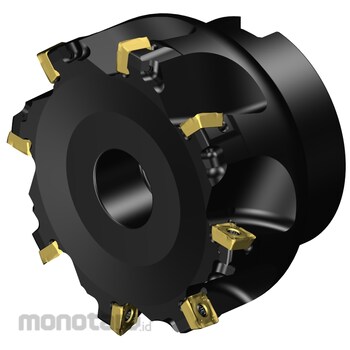

Sandvik Cutter 490 490-080Q27-08M 1pc
Rp13.999.900
Persediaan
Spesifikasi Produk
| Model Number | 490-080Q27-08M |
|---|---|
| Unit | 1pc |
| Cutting diameter (DC) (mm) | 80 |
| Tool cutting edge angle (KAPR) (°) | 90 |
| Cutting item count (CICTTOT) | 8 |
| Cutting item count (CICT) | 8 |
| Clamping type code (MTP) | S |
| Depth of cut maximum (APMXPFW) (mm) | 5.5 |
| Centre cutting capability (CCC) | FALSE |
| Depth of cut maximum (APMXFFW) (mm) | 5.5 |
| Maximum ramping angle (RMPXFFW) (°) | - |
| Maximum plunge depth (AZ) (mm) | - |
| Cutting pitch differential (CPDF) | TRUE |
| Hand | R |
| Damping property (DPC) | FALSE |
| Coolant entry style code (CNSC) | 1: axial concentric entry |
| Coolant Pressure (CP) (bar) | 10 |
| Connection diameter (DCON) (mm) | 27 |
| Standard number (STDNO1) | ISO6462 |
| Standard letter (STDLET1) | A |
| Functional length (LF) (mm) | 50 |
| Torque (N m) | 1.2 |
| Body material code (BMC) | Steel |
| Rotational speed maximum (RPMX) | 19,400 1/min |
| Weight of item (kg) | 1.17 |
| Sensor embedded property (SEP) | - |
| M Code | 60684224 |
| Berat (Kg) | 0.3 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Shoulder milling, face milling, all work materials, cross pitch, arbor mounting (mm)
Feature
Supports from face milling to shoulder milling.The processing surface is good.
