Sumitomo Electric Insert TBGT-W TBGT060104L-W AC530U 1box(10pcs)
Rp2.399.900
Persediaan

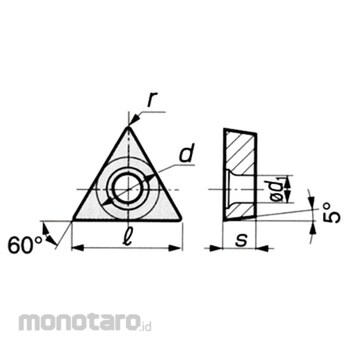

Spesifikasi Produk
| Model Number | TBGT060104L-W AC530U |
|---|---|
| Unit | 1box(10pcs) |
| Hole Diameter D1 (phi mm) | 2.2 |
| Thickness s (mm) | 1.59 |
| Nose Radius r (mm) | 0.4 |
| Chip breaker | One side |
| With Or Without Hole | Yes |
| Thickness (mm) | 1.59 |
| Hand | Left |
| Material | AC530U |
| Type | Positive |
| Corner Height Tolerance (mm) | +/- 0.025 |
| Cutting Blade Length (mm) | 6.9 |
| Inscribed Circle Diameter (phi mm) | 3.97 |
| Corner Radius (mm) | 0.4 |
| Thickness Tolerance (mm) | +/- 0.13 |
| Inscribed Circle Tolerance (mm) | +/- 0.025 |
| Shape | Equilateral triangle 60 degrees |
| Hole Shape | Partially cylindrical hole one side 40 degrees - 60 degrees |
| Clearance Angle (degree) | 5 |
| Inscribed Circle Diameter D (phi mm) | 3.97 |
| Blade Length l (mm) | 6.9 |
| M Code | 34819197 |
| Berat (Kg) | 0.9 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 01 January 2026 |
