Sumitomo Electric Insert TBGT-W
#Grup produk P103975641
Sebelum PPN:
Rp1.899.900 - Rp2.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman

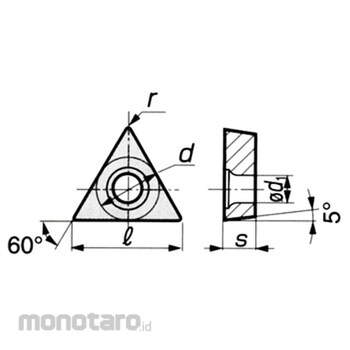

Spesifikasi
| Chip breaker | One side |
|---|---|
| With Or Without Hole | Yes |
| Thickness (mm) | 1.59 |
| Clearance Angle (degree) | 5 |
| Corner Height Tolerance (mm) | +/- 0.025 |
| Cutting Blade Length (mm) | 6.9 |
| Hole Shape | Partially cylindrical hole one side 40 degrees - 60 degrees |
| Inscribed Circle Diameter (phi mm) | 3.97 |
| Inscribed Circle Tolerance (mm) | +/- 0.025 |
| Shape | Equilateral triangle 60 degrees |
| Thickness Tolerance (mm) | +/- 0.13 |
