Insulation, protection and reinforcement of wire ends and wire connections
Wire color identification and bundling
Insulation and protection of resistors and capacitors

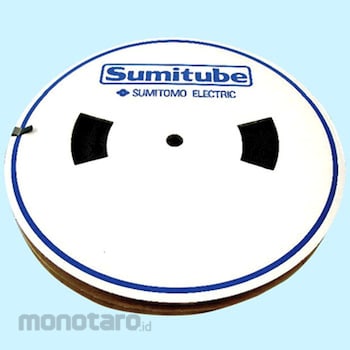

Sumitomo Electric Sumitube F2 (Z) 5x0.25 Black 1roll
Rp5.099.900
Persediaan
Spesifikasi Produk
| Model Number | 5x0.25 |
|---|---|
| Unit | 1roll |
| Shrink Completion Temperature (°C) | 90 |
| Wall Thickness (mm) | Before shrinkage: 0.25 (reference value) After shrinkage: 0.56 (maximum value) |
| Tensile Strength (MPa) | Before aging: 10.4 or more After aging: 7.3 or more (158 degrees Celsiusx7 days) |
| RoHS Directive | 6 substances |
| Dielectric Breakdown Voltage (kV) | Before aging: AC2.5 or more After aging: AC2.5 or more (158 degrees Celsiusx7 days, residual rate 50% or more) |
| Conformity Standard | Compliant with UL224 (certification file No.E48762), CSA C22.2 No.198.1 (certification file No.LR33298), Electrical Appliance and Material Safety Law, RoHS Directive |
| Characteristic | Flame retardant, flexible, insulating |
| Length (m) | 100 |
| Elongation (%) | Before aging: 200% or more After aging: 100% or more (158 degrees Celsiusx7 days) |
| Color | Black |
| Inner diameter (phi ) | Before shrinking 5.40 +/- 0.30mm 2.50mm after shrinking |
| Withstand Voltage | Before aging: AC2.5kVx60 seconds, no destruction After aging: 158 degrees Celsiusx7 days, AC2.5kVx60 seconds, no destruction |
| Continuous Operating Temperature (°C) | -55 to 125 |
| Name (mm) | 5x0.25 |
| Construction | Single layer |
| Ratio | 2:01 |
| Shrinkage Factor (%) | Inner diameter shrinkage: 50% or more Length change rate: 0 +/- 5% |
| Volume Resistivity (ohm.cm) | 1.0x1014 or more |
| Material | Electron beam crosslinked soft flame retardant polyolefin resin |
| Shrink Temperature | 90 degrees Celsius or higher |
| M Code | 08741214 |
| Berat (Kg) | 1.0 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 03 February 2026 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
- Please confirm the size information and other product details on Attribute Information then place an order.- Image on this page only as Representative Image. It will follow the Product Information
Feature
- UL and CSA standard products Flame retardant (no chlorine-based flame retardant, no specific bromine-based flame retardant (PBDE s , PBB s )) Flexible
