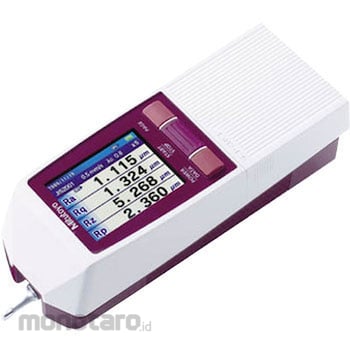

Mitutoyo On-Site Surface Roughness Measurement (Surftest) SJ-210 0.75MN 1unit
Rp49.999.900
Persediaan
Spesifikasi Produk
| Model Number | SJ-210 0.75MN |
|---|---|
| Unit | 1unit |
| Weight (g) | Approx. 500 (calculation display, drive, standard detector) |
| Dimensions (mm) | Calculation display section / 52.1 x 65.8 x 160 (slide cover closed, detector not attached) Drive / 115 x 23 x 26 (without detector) |
| Filter | Gaussian, 2CR75, PC75 |
| Cutoff Value Lamadas (µm) | 2.5, 8 |
| Measuring Range (mm) | (X axis) 17.5 |
| Measurement Range (µm) | (Detector) 360 (-200 to +160) |
| Standard Length (mm) | 0.08, 0.25, 0.8, 2.5 |
| Cut-Off Value Lamadac (mm) | 0.08, 0.25, 0.8, 2.5 |
| External Connection | (I/O) USB I/F, Digimatic output, Printer output, RS-232C I/F, Footswitch I/F |
| Customization | Parameters to be displayed and calculated can be selected |
| Display Size (mm) | Liquid crystal (display area) /36.7x48.9 |
| Charging Time (hour) | Built-in battery/approx. 4 (may vary depending on ambient temperature) |
| Mitutoyo Part Number | 178-560-01 |
| Spacing (mm) | (0.3-0.6) 0.01 (Number of sections: x 1, x 2, x 3, x 4, x 5, x 6, x 7, x 8, x 9, x 10, any) |
| Memory Backup | Saves measurement conditions when power is turned off |
| Resolution (µm) | 0.02 (360 microm), 0.006 (100 microm), 0.002 (25 microm) |
| M Code | 38630487 |
| Berat (Kg) | 2.3 |
| Tanggal Produk Terdaftar | 26 August 2020 |
| Terakhir Diperbaharui | 16 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Admission Decision : Maximum value rule/16% rule/Average value rule (Only the average value rule in the ANSI standard, only the maximum value rule/average value rule in the VDA standard) Supported Print Functions : Measurement conditions/calculation results/calculation results for each section/evaluation curve/load curve/amplitude distribution curve/environment setting items Accessories : Connection cable (12BAA303), roughness standard piece (178-601), carrying case (12BAK699), calibration stand (12BAK700), display protection sheet, AC adapter, instruction manual, one-sheet manual, warranty card Parameters : Ra, Rc, Ry, Rz, Rq, Rt, Rmax, Rp, Rv, R3z, Rsk, Rku, Rc, RPc, Rsm, Rz1max, S, HSC, RzJIS, Rppi, R delta a, R delta q, Rlr, Rmr, Rmr ( c), Rdeltac, Rk, Rpk, Rvk, Mr1, A1, A2, Vo, Rpm, tp, Htp, R, Rx, AR, customizable
Warning
This Product Exclude Calibration CertificateFeature
- A compact one-body surface roughness measuring instrument has evolved to absorb many requests. - Equipped with a color LCD that can display not only the calculation results and measurement conditions, but also the waveform of the surface roughness. - Compatible with various roughness standards, equipped with various functions such as abundant parameters and arbitrary length measurement. Button operations and settings on the top of the main unit and inside the openable cover can be easily performed. If you press the measurement start button, the result will be displayed after measurement. - The built-in rechargeable battery allows you to take measurements in places without power. - Computation results and measured figures can be printed using the SJ-210 printer (sold separately). - When the measured cumulative distance exceeds the preset "threshold", an alarm display can be displayed. Effective for managing stylus tip wear.
