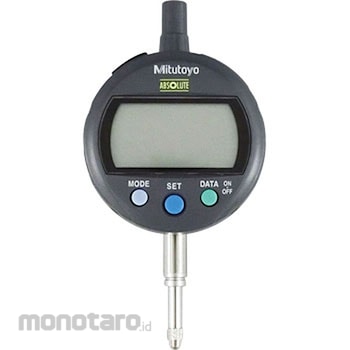

Mitutoyo 543 Series ABS Digimatic Indicator ID-CX ID-C1012XB 1unit

Name: Mitutoyo 543 Series ABS Digimatic Indicator ID-CX ID-C1012XB 1unit
Brand: Mitutoyo
SKU: S015878182
Price: 3999900 IDR
Availability: InStock

#Nomor SKU S015878182

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	ID-C1012XB
Unit	1unit
Back lid specification	flat
Repeat Precision (mm)	0.01 or less
Measuring Force (N)	0.9
Minimum Range (mm)	0.01
Weight (g)	170
Accessories	Button-type silver oxide battery SR44 for monitor (1 piece)
Contact Point (mm)	Spherical R = 1.5 (Carbide)
Return Error (mm)	0.02 or less
Display	6 digit LCD, sign
Mitutoyo Part Number	543-400B
Power Supply	SR44 (button type, silver oxide battery) x 1
Wide Range Accuracy (mm)	0.02 or less
Series	543
Battery Life (continuous time)	5000
Quantization Error	Not including +/- 1 count
Outer Frame Diameter (mm)	59
Measuring Range (mm)	12.7
M Code	38642432
Berat (Kg)	0.2
Tanggal Produk Terdaftar	26 August 2020
Terakhir Diperbaharui	01 April 2026

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Function : Zero set (INC length measurement system), Preset (ABS length measurement system origin setting), Direction switching, Tolerance judgment, 330 degrees display rotation function, Display value hold (when no externally connected device is installed), Calculation f (x) = Ax, data output (when external connection device is installed), function lock, low battery alarm, error alarm

Warning

This Product Exclude Calibration Certificate

Feature

- In the ABS (absolute) method, which has an absolute origin on the scale, the set origin is retained as a measurement reference point even after the power is turned off, so that troublesome home position adjustment is not required when the power is turned on again, and measurement can be performed at the same time when the power is turned on. You can start. - The adoption of the ABS method has eliminated overspeed errors. - By setting the upper and lower limits, tolerance judgment measurement can be performed. In addition, only the tolerance judgment result can be enlarged and displayed. - 7000 hours of continuous battery life with a single battery. - There is an output terminal for measurement data, and a statistical process control system or measurement system can be configured.
