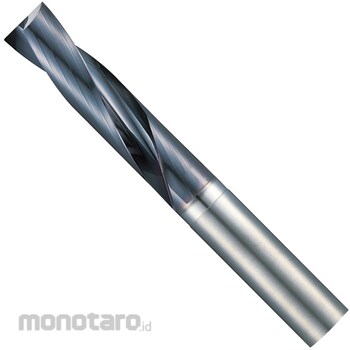

Sumitomo Electric Flat Multi-Drill 6mm MDF0410S2D ACF75 1pc
Rp1.099.900
Persediaan
Spesifikasi Produk
Model Number | MDF0410S2D ACF75 |
---|---|
Unit | 1pc |
Cutting Edge Diameter (ɸ mm) | 4.1 |
Overall Length (mm) | 60 |
Shank Diameter (mm) | 6 |
Refueling Method | External lubrication type |
Machining Hole Depth (l/d) | 2 |
Kegunaan | High-efficiency counterboring, drilling on non-planar surfaces (inclined surface, cylindrical surface, etc.), intermittent drilling, cross-hole drilling, tap drilling of thin plates |
Material | Carbide |
Coating | PVD coat |
M Code | 18431367 |
Berat (Kg) | 0.5 |
Tanggal Produk Terdaftar | 28 February 2020 |
Terakhir Diperbaharui | 27 May 2025 |
Informasi Produk
Description
The Flat Multi Drill MDF type is a solid carbide drill that can be used for various purposes such as high efficiency in counterboring and drilling on inclined or curved surfaces. 180-degree tip angle design for various drillings: High efficiency counterboring, drilling on non-planar surfaces such as inclined surfaces and cylindrical surfaces, and intermittent drilling. Also effective in controlling burrs on the exit side. Improved processing stability: High rigidity achieved by using RS thinning with a thick bottom surface. Excellent chip evacuation performance: A wide chip pocket and high-grade rake face shape achieve excellent chip evacuation performance. High edge strength: Optimized edge design achieves high edge strength. For internal lubrication: For deep hole drilling and flat hole drilling. (MDF-H type)
