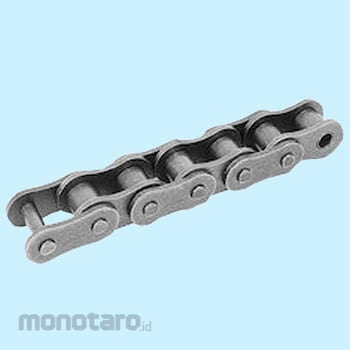

ZEXUS Roller Chain 60(R) 1pc
Rp1.099.900
Persediaan
Spesifikasi Produk
| Model Number | 60(R) |
|---|---|
| Unit | 1pc |
| Minimum Tensile Strength (kN) | 39.2 |
| Pin Type | Rivet type |
| Material | steel |
| Number of Unit Links | 160 |
| Unit Length (m) | 3 |
| Pin Diameter D (mm) | 5.95 |
| Pin Length L2 (mm) | 12.75 |
| Roller Outer Diameter (R) (mm) | 11.91 |
| Maximum Allowable Tension (kN) | 10.7 |
| Link Plate Height H (mm) | 17.8 |
| Link Width (mm) | 12.7 |
| Offset Pin Length Z (mm) | 28.8 |
| Number of Columns | 1 |
| Type | Roller chain |
| Jis Tensile Strength (kN) | 31.3 |
| Pin Length L (mm) | 26.8 |
| Pitch (mm) | 19.05 |
| Mass (kg/m) | 1.47 |
| Link Plate Thickness T (mm) | 2.3 |
| Accessories | With one joint link |
| TRUSCO Number | 412-4766 |
| M Code | 10812636 |
| Berat (Kg) | 4.6 |
| Tanggal Produk Terdaftar | 28 January 2020 |
| Terakhir Diperbaharui | 01 December 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Roller outer diameter indicates bushing outer diameter for bushed chain.Feature
The standard roller chain uses a solid bush that pursues full contact between the pin and the bush, achieving a significant performance improvement.
