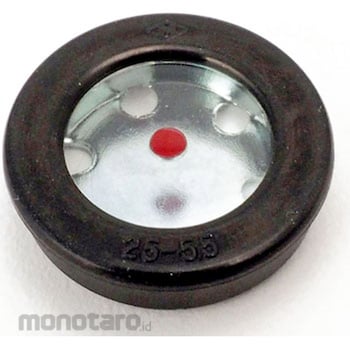

MUSASHI Oil Level Gauge With Outer Diameter Collar OLG-25A 1pc
Rp81.000
Persediaan
Spesifikasi Produk
| Model Number | OLG-25A |
|---|---|
| Unit | 1pc |
| Counter Hole Tolerance H8 | +0to0.033 |
| Material | Sight glass / polycarbonate resin |
| Width B (mm) | 5.5 +/- 0.2 |
| Type | Type with outer diameter collar |
| Heat Resistance Temperature (°C) | 110 |
| Shape | circular |
| Mating Hole Tolerance H7 | +0to0.021 |
| Outer Diameter d (mm) | 25.0 (+ 0.1 to 0.2) |
| Maximum Heat Resistance Temperature (°C) | 110 |
| TRUSCO Number | 310-3013 |
| M Code | 33053912 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 28 January 2020 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* High octane gasoline, organic solvents, and oils containing extreme pressure additives cannot be used above 80 degrees Celsius.Feature
The oil level gauge (oil level gauge) can accurately confirm the position of the oil level or liquid level in the oil tank or gearbox. It has properties such as heat resistance, pressure resistance, and sealing performance as well as oil resistance, and is used in a wide range of applications such as reduction gears, hydraulic equipment, machine tools, industrial machines, agricultural machines, and railway vehicles.
