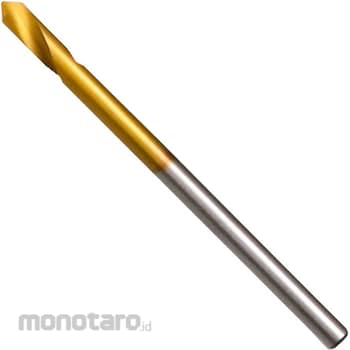

monotaro Nc Spotting Drill 90 Degree Tin Coating TiN-NC-SPTD90-3 1pc
Rp159.900
Persediaan
Spesifikasi Produk
| Model Number | TiN-NC-SPTD90-3 |
|---|---|
| Unit | 1pc |
| Material | Hss Co 5% |
| Overall Length (mm) | 50 |
| Coating | TiN |
| Core ThickNess (mm) | 0.3-0.4 |
| Drill Diameter (Ø mm) | 3 |
| Shank Diameter (mm) | 3 |
| Groove Length (mm) | 10 |
| Tip Angle (°) | 90 |
| Tolerance | 0 to -0.010 (drill diameter), -0.006 to 0 (shank diameter) |
| M Code | 41562983 |
| Garansi Unit | 12 bulan |
| Garansi Part | 12 bulan |
| Garansi Service | 12 bulan |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 28 January 2020 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
For simultaneous processing of hole chamfering and centering.
Warning
- Be sure to wear protective equipment when using, as there is a risk of injury. - Please do not use for purposes other than the original purpose.
Feature
Centering (drilling) before drilling and hole chamfering can be realized at the same time. Adopts TiN coating, has longer life and is suitable for more work materials than non-coated products.Ketentuan dan Kondisi Barang
