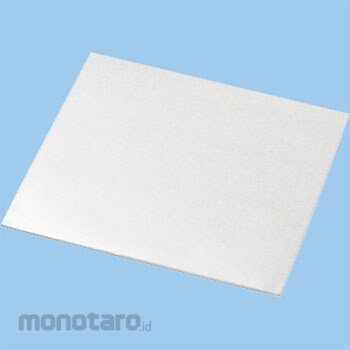

3M Hyper Soft Heat Dissipation Sheet 5580H-15 1sheet

Name: 3M Hyper Soft Heat Dissipation Sheet 5580H-15 1sheet
Brand: 3M
SKU: S013206345
Price: 259900 IDR
Availability: InStock

#Nomor SKU S013206345

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	5580H-15
Unit	1sheet
Length (mm)	100
Width (mm)	100
Thickness (mm)	1.5
Main Uses	For electric and electronic
Characteristic	Thermal conductivity, electrical insulation, durability, flame retardant
Structure	Thermally conductive acrylic layer (non-adhesive) / film liner / thermally conductive low-hardness acrylic layer (adhesive)
Tape Length (m)	0.1
M Code	21006816
Berat (Kg)	0.1
Tanggal Produk Terdaftar	15 January 2020
Terakhir Diperbaharui	01 December 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

Excellent heat conductivity. Since it is a non-silicone heat dissipation material, no siloxane gas is generated. Because it is a soft material, it can sufficiently follow the irregularities on chips and substrates. Excellent adhesion, reducing the thermal resistance of the bonding surface. It is electrically insulating. It has excellent durability and shows stable electrical insulation and thermal conductivity even after long-term use. Obtained UL94 V-0 flame retardant standard. (UL File No. E176845) Lower odor type than conventional products.

Feature

Heat radiation of heat-generating components of electronic and electrical equipment Heat generated by semiconductor components is efficiently transmitted to heat-radiating components such as heat sinks and metal covers. Also, since no siloxane gas is generated, it can be used where silicone materials cannot be used.
