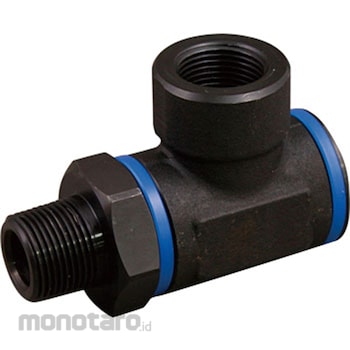

Stek Swivel Joint A Series SLT-4306A 1pc
Rp4.799.900
Persediaan
Spesifikasi Produk
| Model Number | SLT-4306A |
|---|---|
| Unit | 1pc |
| Shape | Swivel joint |
| Maximum Rotation Speed (rpm) | 30 |
| Dimension H (mm) | 45 |
| Port Size | Rc3/4 x R3/4 |
| Temperature Range (°C) | -20 to +80 |
| Dimension L1 (mm) | 65 |
| Maximum Operating Pressure (MPa) | 21 |
| Dimension X (mm) | 41 |
| Dimension L2 (mm) | 35 |
| Dimension L3 (mm) | 56 |
| Dimensions d (mm) | 16 |
| Fluid Used | Air, general hydraulic oil |
| Connection Screw Type | Rc x R |
| M Code | 22244434 |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 10 January 2020 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This product was developed as a product compatible with the old SLN / SLI. It is a joint made by combining a PTEF and an O-ring cap seal using a single seal method.
