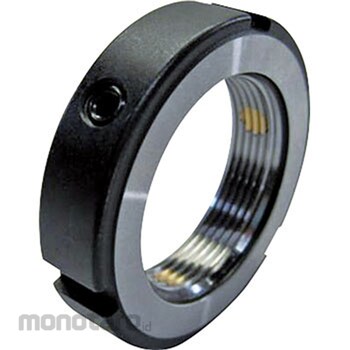

Nikki Precision Locknut MR Series MR65X2.0P 1pc
Rp1.499.900
Persediaan
Spesifikasi Produk
| Model Number | MR65X2.0P |
|---|---|
| Unit | 1pc |
| Nominal of Screw | 65 |
| Screw pitch | 2 |
| Outer Diameter d (mm) | 85 |
| TRUSCO Number | 848-2114 |
| Shape | Circular |
| Type | Lock nut |
| Inner Diameter (mm) | 78 |
| Hardness | HRC28-32 |
| Dimensions t (mm) | 3 |
| Accuracy | ISO 4H |
| Surface Treatment | None |
| Dimensions d (mm) | 78.0 |
| Dimension H (mm) | 16.0 |
| Dimensions g (mm) | 7 |
| Nut Material | SCM440 |
| Set Screw Standard | M8 |
| Set Screw Maximum Torque (N m) | 18.0 |
| M Code | 16730857 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 20 December 2019 |
| Terakhir Diperbaharui | 20 October 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The set screw is perpendicular to the axial direction and is divided into three parts (equal to 120 degrees). It is a high-precision lock nut with a polished finish with a runout accuracy of 3 microns or less with respect to the screw direction. For this reason, by tightening the set screw evenly from three directions, concentricity with the shaft can be easily obtained, and stable assembly with high precision and little deflection in the axial direction can be performed in a short time. Application: - Fixing bearings for machine tool spindles. - Fixing ball screw support bearing. - Fixing high-speed rotating shafts and bearings that require high accuracy.
