- Compact universal valve.
- Connection technology via electrical connecting plate (E-box).
- High flow rate relative to its size.
- In-line valves can be used as individual valves or manifold valves.

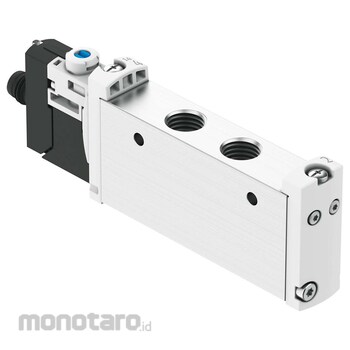

FESTO Air Solenoid Valve VUVG Series VUVG-L14-M52-AT-G18-1R8L 14mm 1pc
Harga spesial Rp599.900 Harga normal Rp2.099.900
Persediaan
Diskon 71%
Promo
Spesifikasi Produk
| Model Number | VUVG-L14-M52-AT-G18-1R8L |
|---|---|
| Unit | 1pc |
| Valve Size (mm) | 14 |
| Nominal Size (mm) | 5.6 |
| Medium Temperature (°C) | -5 to 60 |
| Ambient Temperature (°C) | -5 to 60 |
| Material Housing | Wrought Aluminium alloy |
| Valve Function | 5/2, monostable |
| Actuation Type | Electrical |
| Standard Nominal Flow Rate (L/minute) | 680-730 |
| Pneumatic working port | G1/8 |
| Operating Voltage (V) | 24 (DC) |
| Operating Pressure (MPa) | 0.25-0.8 |
| Operating Pressure (bar) | 2.5-8 |
| Structural Design | Piston gate valve |
| Reset Method | Pneumatic spring |
| Certification | RCM compliance mark c UL us - Recognized (OL) |
| Degree of Protection | IP65 with plug socket |
| Nominal Width (mm) | 5.6 |
| Exhaust air Function | With flow control option |
| Sealing Principle | Soft |
| Mounting Position | Any |
| Manual override | Detenting, Non-detenting, Covered |
| Type of control | Pilot-controlled |
| Pilot air Supply port | Internal |
| Symbol | 00992908 |
| Lap Type | Overlap |
| Suitability for Vacuum | No |
| Switching Time Off (ms) | 22 |
| On Switching Time (ms) | 14 |
| Duty Cycle (%) | 100 |
| Maximum Positive Test Pulse with 0 Signal (µs) | 700 |
| Maximum Negative Test Pulse on 1 Signal (µs) | 900 |
| Coil Characteristics | 24 V DC: 1.0 W |
| Permissible Voltage Fluctuations (%) | +/- 10 |
| Operating Medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on Operating and Pilot Media | Operation with oil lubrication possible (required for further use) |
| Vibration Resistance | Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6 |
| Restricted Ambient and Media Temperature (°C) | -5 - 50 without holding power reduction |
| Shock Resistance | Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27 |
| Corrosion Resistance Class (CRC) | 2 - Moderate corrosion stress |
| Electrical Connection | Via electrical sub-base |
| Type of Mounting | On terminal strip With through-hole Optionally: |
| Note on Materials | RoHS-compliant |
| Seal Material | HNBR, NBR |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 20 November 2019 |
| Terakhir Diperbaharui | 03 October 2025 |
