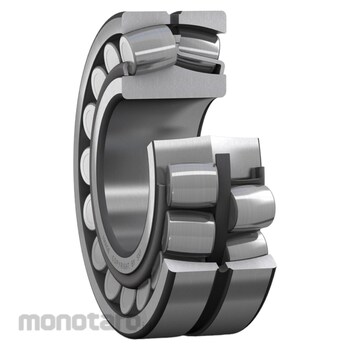

SKF EK Type Spherical Roller Bearings 22217 EK with Tapered Bore and Relubrication Features 1pc
Rp2.099.900
Persediaan
Spesifikasi Produk
| Model Number | 22217 EK |
|---|---|
| Unit | 1pc |
| Bore Diameter d (mm) | 85 |
| Outside Diameter D (mm) | 150 |
| Basic Dynamic Load Rating C (kN) | 291 |
| Basic Static Load Rating C0 (kN) | 325 |
| Reference Speed (rpm) | 4000 |
| Limiting Speed (rpm) | 5600 |
| SKF Performance Class | SKF Explorer |
| Number of Rows | 2 |
| Width B (mm) | 36 |
| Locating Feature, Bearing Outer Ring | Without |
| Bore Type | Tapered 1:12 |
| Cage | Sheet metal |
| Radial Internal Clearance | CN |
| Tolerance Class for Dimensions | Normal |
| Tolerance Class for Run-out | P5 |
| Sealing | Without |
| Lubricant | None |
| Relubrication Feature | With |
| Shoulder Diameter of Inner Ring d2 (mm) | ≈ 101 |
| Shoulder/Recess Diameter of Outer Ring D1 (mm) | ≈ 133 |
| Width of Lubrication Groove b (mm) | 6 |
| Diameter of Lubrication Hole K (mm) | 3 |
| Chamfer Dimension r1,2 (mm) | min. 2 |
| Diameter of Housing Abutment Da Max (mm) | max. 139 |
| Radius of Fillet ra (mm) | max. 2 |
| Fatigue Load Limit Pu (kN) | 34.5 |
| Limiting Value (e) | 0.22 |
| Recommended Tightening Angle for Lock Nut (°) | 150 |
| Dimensional Tolerances | Normal |
| Radial Run-out | P5 |
| M Code | 87024533 |
| Berat (Kg) | 4.0 |
| Tanggal Produk Terdaftar | 30 August 2019 |
| Terakhir Diperbaharui | 21 July 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
Warning
Image may differ from product. See technical specification for details.Feature
- Accommodate misalignment- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
