SKF Radial Shaft Seal Tipe HMSA10 Karet Fluoro 30X47X7 HMSA10 V 30mm 1pc

Name: SKF Radial Shaft Seal Tipe HMSA10 Karet Fluoro 30X47X7 HMSA10 V 30mm 1pc
Brand: SKF
SKU: S011125778
Price: 26000 IDR
Availability: OutOfStock

#Nomor SKU S011125778

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	30X47X7 HMSA10 V
Unit	1pc
Shaft Diameter d1 (mm)	30
Housing Bore Diameter D (mm)	47
Seal Width b (mm)	7
Allowable Circumferential Speed (m/s)	19.5
Rotation Speed (rpm)	12420
Design	HMSA10
Auxiliary Lip	Yes
Sealing Lip Material	Fluoro rubber (FKM)
Type of Outside Diameter	Rubber metal reinforced
Unit System	Metric
Minimum Operating Temperature (°C)	min. -20
Maximum Operating Temperature (°C)	max. 200
Operating Temperature for Short Periods (°C)	max. 200
Circumferential Speed (m/s)	max. 19.5
Maximum Rotation Speed (rpm)	max. 12420
Pressure Differential (N/mm²)	0.05
SKF Speedi-Sleeve	99114
M Code	17472647
Berat (Kg)	0.1
Tanggal Produk Terdaftar	30 August 2019
Terakhir Diperbaharui	08 December 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

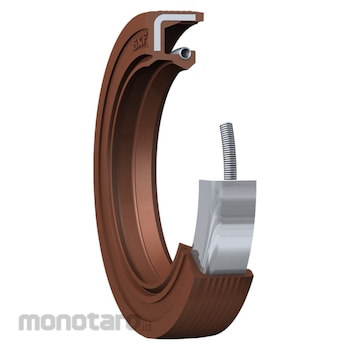

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.

Warning

Image may differ from product. See the technical specification for details.

Feature

- High pumping rate
- Higher contamination exclusion with dust lip
- With garter spring
- Accommodate misalignment
