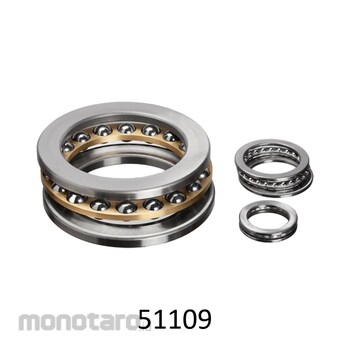

CRAFT BEARINGS Thrust Bearing (Laher) 51109 1pc
Rp60.000
Persediaan
Spesifikasi Produk
| Model Number | 51109 |
|---|---|
| Unit | 1pc |
| Dimensions d (mm) | 45 |
| Dimension D (mm) | 65 |
| Dimension B (mm) | 14 |
| Basic Load Rating (N) | Dyn. C : 24200, Stat. Cₒ : 57000 |
| Limiting Speed (rpm) | Lubrication Grease : 3400, Lubrication Oil : 4500 |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 07 August 2019 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Single direction thrust bearings CRAFT bearings Single Direction Thrust Ball Bearings consist of two flat washers with raceways, balls and cage which are detachable. The washers have a flat seating surface therefore they have to be embedded so that all balls are equally loaded. Bearings only transfer axial loads in one direction. Cage Thrust ball bearings have as standard pressed steel cage, where the material and application is not marked. Larger size bearings use massive brass cage to offer more robust solutions.
Peringatan
Gambar hanya mewakili produk. Detil produk tercantum pada nama produk.Feature
CRAFT bearings thrust ball bearings are design to accommodate large axial load, however they must not be subjected to radial load. Most frequent bearings are single direction thrust ball bearings. During operation these bearings must be constantly subjected to a specific axial load. These bearings can be also combined with spherical rings to cope with small initial misalignments.
