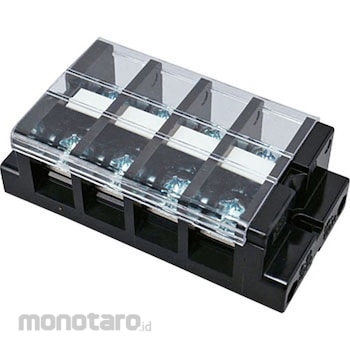

monotaro Assembly Terminal Block (60A) T60-04PM 1pc
Rp159.900
Persediaan
Spesifikasi Produk
| Model Number | T60-04PM |
|---|---|
| Unit | 1pc |
| Withstand Voltage (V) | 2500 |
| Dimension B (mm) | 92 |
| Wiring System | screw |
| The number of poles | 4P |
| RoHS Directive | Correspondence |
| Maximum Current (A) | 3.5mm <sup> 2 </ sup> wire: 30,5.5mm <sup> 2 </ sup> wire: 40,8mm <sup> 2 </ sup> wire: 50,14mm <sup> 2 </ sup> wire: 60 |
| Material | [Terminal base] phenol (black), [Cover] PC (transparent) / UL94-V0, [conductive plate] Brass (nickel plating), [the terminal screw portion Iron (chromate), [noted seal] Fiber |
| Mounting system | Directly attached |
| Rated Insulation Voltage (V) | 600 |
| Terminal Screws | M6 |
| Dimensions a (mm) | 104 |
| M Code | 18569093 |
| Berat (Kg) | 0.2 |
| Tanggal Produk Terdaftar | 28 June 2019 |
| Terakhir Diperbaharui | 15 August 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Please use the rating applicable wire. . Please be sure to tighten so that the mounting screws are not loose. (Please stop excessive tightening)Ketentuan dan Kondisi Barang
