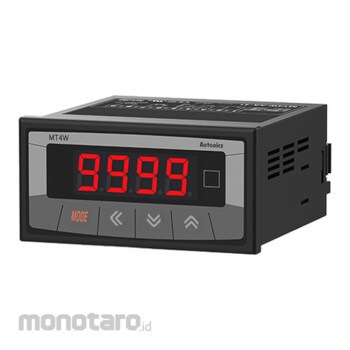

Autonics Digital Panel Meters Multipanel MT4W Series MT4W-DA-1N 1pc

Name: Autonics Digital Panel Meters Multipanel MT4W Series MT4W-DA-1N 1pc
Brand: Autonics
SKU: S010732632
Price: 759900 IDR
Availability: InStock
Rating: 100 (1 reviews)

#Nomor SKU S010732632

Wishlist

Rating:

100% of 100

(1)

1 Ulasan

Spesifikasi Produk

Model Number	MT4W-DA-1N
Unit	1pc
Voltage (V)	DC 12-24
Display Methode	LED 4 digit 7-segmen
Berat (Kg)	0.3
Tanggal Produk Terdaftar	14 June 2019
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

The MT4Y/MT4W series compact digital panel meters are available in various input and output options, allowing flexible application in diverse environments. The units can display measured values between -1999 and 9999, and features various user-friendly functions including high/low-limit display scale, AC frequency measurement, zero-point adjustment, and PV transmission output scale function. The MT4Y series meters are DIN W 96 x H 48 mm and the MT4W series meters are DIN W 72 x H 36 mm in size.

Warning

To measure the current over DC5A, please select DV type because the shunt should be used.
In case of selecting frequency display, no output will be provided even if it is output support models.
(main output, sub output and RS485 communication output)
AC measuring function, and frequency measuring function are only for AC measuring input type.
The weight includes packaging. The weight in parenthesis is for unit only.
Environment resistance is rated at no freezing or condensation.Image on this page only as Representative Image, Please check the specifications of each size and color for details
