Autonics Fiber Optic Amplifier BF4GP BF4 Series 1pc

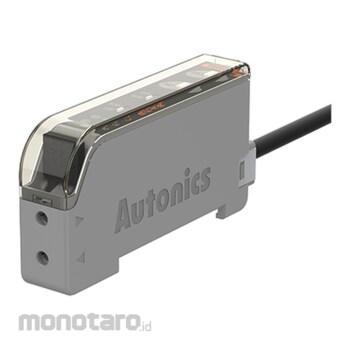

Name: Autonics Fiber Optic Amplifier BF4GP BF4 Series 1pc
Brand: Autonics
SKU: S010731260
Price: 819900 IDR
Availability: InStock

#Nomor SKU S010731260

Autonics

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	BF4GP
Unit	1pc
Type	Standard type
Accessories	Fixing bracket, Bolts, Nuts
Cable Spesification	Ø4mm, 4-wire, 2m(AWG22, core diameter: 0.08mm, number of cores: 60, insulator out diameter: Ø1.25mm)
Control Output	PNP open collector
Current Consumption (mA)	Max. 45
Environment Ambient Humidity (%RH)	35 to 85; storage: 35 to 85
Environment Ambient Illumination (lx)	Sunlight: Max. 11000; Incandescent lamp: Max. 3000 (received illumination)
Environment Ambient Temperature (°C)	-10 to 50; storage: -25 to 70
Light Source (nm)	Green LED(525nm)
Material	Case: Heat-resistance acrylonitrile butadiene styrene, Cover: Polycarbonate
Mutual Interference Prevention	Built-in differential frequency mode(frequency 1(normal mode): max. 0.5ms, frequency 2: max. 0.7ms)
Operation Mode	Light ON/Dark ON(set by ON/OFF button)
Power Supply (V)	12-24 (DC) ±10%(Ripple P-P: Maks. 10%)
Response Time (ms)	Frequency 1: Max. 0.5; Frequency 2: Max. 0.7
Self-diagnosis Output	ON state under unstable sensing(when the target stays for 300ms in unstable level); ON state when control output is short-circuited
Sensitivity Adjustment	Manual
Timer Function (ms)	OFF Delay(40ms)
Series	BF4 Series
Berat (Kg)	0.1
Tanggal Produk Terdaftar	14 June 2019
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Warning

- The weight includes packaging. The weight in parenthesis is for unit only.
- The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
Image on this page only as Representative Image, Please check The specifications of each size and color for details
