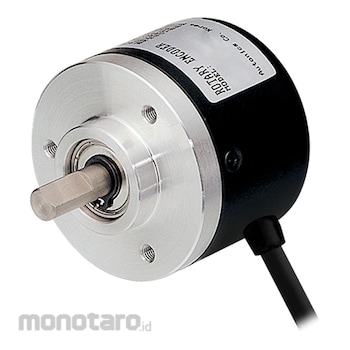

Autonics Rotary Encoder E40S Inkremental E40S6-1000-3-T-24 1pc
Rp1.599.900
Persediaan
Spesifikasi Produk
| Model Number | E40S6-1000-3-T-24 |
|---|---|
| Unit | 1pc |
| Output Phases | A, B, Z |
| Type | Incremental |
| Connection Type | Radial cable type |
| Resolution (P/R) | 1000 |
| Control Output | Totem Poles |
| Level of Protection | IP50 |
| Shaft Outer Diameter (mm) | 6 |
| Starting Torque (gf.cm) | 40 (Maximum) |
| Maximum Allowable Revolution (rpm) | 5000 |
| Maximum Response Frequency (kHz) | 300 |
| Power Supply (V DC) | 12-24 (±5% (ripple P-P: max. 5%)) |
| Environment Ambient Humidity (%RH) | 35 to 85; storage: 35 to 90 |
| Environment Ambient Temperature (°C) | -10 to 70; storage: -25 to 85 |
| Accessories | Ø6mm coupling standard, Ø8mm coupling(sold separately) |
| Berat (Kg) | 0.1 |
| Tanggal Produk Terdaftar | 14 June 2019 |
| Terakhir Diperbaharui | 27 May 2025 |
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The E40 series shaft-type incremental rotary encoders feature an ultra-compact Ø40 mm housing size that allows easy installation in tight or confined spaces. The low moment of inertia of the shaft minimizes the effect on the rotation of the equipment used. Encoders are available in shaft type, hollow shaft type and blind hollow shaft type with various output control options
Warning
- Make sure that max. response revolution should be lower than or equal to max. allowable revolution when selecting the resolution.[Max. response revolution (rpm) = Max. response frequency/Resolution × 60sec]
-The weight includes packaging. The weight in parenthesis is for unit only.
-Environment resistance is rated at no freezing or condensation.
Image on this page only as Representative Image, Please check the specifications of each size and color for details
Feature
- Ø 40 mm housing incremental rotary encoders- Shaft, hollow shaft, blind hollow shaft models available
- Easy installation in tight or limited spaces
- Low shaft moment of inertia
- Various resolutions: 1 to 5000 pulses per revolution
- Various control output options
- Power supply: 5 VDCᜡ ± 5%, 12 - 24 VDCᜡ ± 5%
