CKD Linear Slide Cylinder Double Acting LCR-16-125 LCR-16-125-T2V-D 1pc

Name: CKD Linear Slide Cylinder Double Acting LCR-16-125 LCR-16-125-T2V-D 1pc
Brand: CKD
SKU: S010558522
Price: 13999900 IDR
Availability: InStock

#Nomor SKU S010558522

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	LCR-16-125-T2V-D
Unit	1pc
Tube Inner Diameter (mm)	16
Working Fluid	Compressed air
Guaranteed Pressure Resistance (MPa)	1.05
Operating Piston Speed (mm/s)	50 to 500
Minimum Working Pressure (MPa)	0.15
Ambient Temperature (°C)	-10 to 60 (but not freezing)
Number of switches	With 2 pieces
Operation Method	Backward movement
Refueling	Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32)
Stroke length tolerance	+2.0 mm
Allowable Energy Absorption (J)	0.176
Maximum Working Pressure (MPa)	0.7
Stroke adjustment range (mm)	15 (Shock killer type stopper one side)
Connection aperture	Body side: M5, body rear: M3
Stroke (mm)	125
Switch model number	T2V
Cushion	With rubber cushion
M Code	40123212
Berat (Kg)	0.8
Tanggal Produk Terdaftar	14 May 2019
Terakhir Diperbaharui	27 May 2025

Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini

Informasi Produk

Description

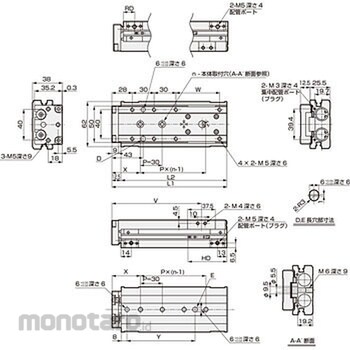

Dimension K (mm)=14; Dimension N (mm)=5; Dimension A (mm)=18; Dimension C (mm)=10; Dimension B (mm)=37; Dimension D (mm)=2; Dimension RD (mm)=17; Dimension E (mm)=1; Dimension L2 (mm)=195.5; Dimension Y (mm)=133.5; Dimension W (mm)=110; Dimension V (mm)=173.3; Dimension H (mm)=38.5; Dimension G (mm)=13; Dimension I (mm)=M5 depth 4; Dimension HD (mm)=53.5; Dimension X (mm)=49; Dimension F (mm)=14; Dimension J (mm)=28.5; Dimension L (mm)=M5 depth 4; Dimension L1 (mm)=208
