CKD Linear Slide Cylinder Double Acting LCR-16-125
#Grup produk P103134952
Sebelum PPN:
Rp12.999.900 - Rp13.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Refueling | Unnecessary (When refueling, use turbine oil Class 1 ISO VG 32) |
|---|---|
| Operating Piston Speed (mm/s) | 50 to 500 |
| Maximum Working Pressure (MPa) | 0.7 |
| Cushion | With rubber cushion |
| Allowable Energy Absorption (J) | 0.176 |
| Ambient Temperature (°C) | -10 to 60 (but not freezing) |
| Connection aperture | Body side: M5, body rear: M3 |
| Guaranteed Pressure Resistance (MPa) | 1.05 |
| Minimum Working Pressure (MPa) | 0.15 |
| Operation Method | Backward movement |
| Stroke (mm) | 125 |
| Stroke adjustment range (mm) | 15 (Shock killer type stopper one side) |
| Stroke length tolerance | +2.0 mm |
| Tube Inner Diameter (mm) | 16 |
| Working Fluid | Compressed air |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

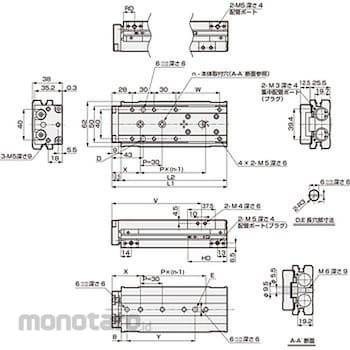

Dimension W (mm)=110; Dimension D (mm)=2; Dimension L (mm)=M5 depth 4; Dimension RD (mm)=17; Dimension I (mm)=M5 depth 4; Dimension B (mm)=37; Dimension X (mm)=49; Dimension V (mm)=173.3; Dimension H (mm)=38.5; Dimension E (mm)=1; Dimension K (mm)=14; Dimension G (mm)=13; Dimension L2 (mm)=195.5; Dimension F (mm)=14; Dimension C (mm)=10; Dimension J (mm)=28.5; Dimension N (mm)=5; Dimension L1 (mm)=208; Dimension HD (mm)=53.5; Dimension A (mm)=18; Dimension Y (mm)=133.5
