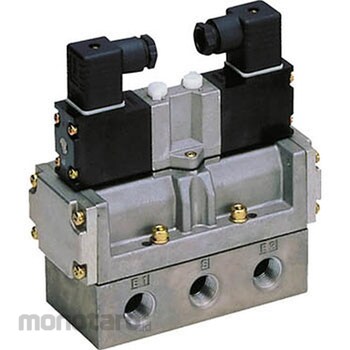

CKD Pilot Operated 5 Port Valve Cellex (Selex) Valve 4F 4 Series 4F420-08-AC100V 1pc
Rp3.199.900
Persediaan
Spesifikasi Produk
| Model Number | 4F420-08-AC100V |
|---|---|
| Unit | 1pc |
| Rated Voltage (V) | AC 100 (50/60 Hz) |
| Connection aperture | Rc1/4 |
| Mass (kg) | 1.30 |
| Wiring Connection | DIN terminal box |
| Valve Specification | Pilot type spool valve |
| Type | Subrate piping type |
| Working Fluid | Compressed air |
| Power Supply (V) | AC100 |
| Number of Positions | 2 |
| Effective Cross Section Area (mm²) | 32 |
| Switching Method | 2 position double |
| Sonic Conductance C (dm³/(s.bar)) | 5.0 |
| Refueling | Unnecessary |
| Guaranteed Pressure Resistance (MPa) | 1.5 |
| Vibration (m/s²) | less than 50 |
| Protective Structure | Dustproof |
| Number of Ports | 5 |
| Atmosphere | Do not use in corrosive gas atmosphere |
| Ambient Temperature (°C) | -5 to 60 |
| Fluid Temperature (°C) | 5 to 60 |
| TRUSCO Number | 110-3113 |
| M Code | 2096665 |
| Berat (Kg) | 0.8 |
| Tanggal Produk Terdaftar | 13 May 2019 |
| Terakhir Diperbaharui | 27 May 2025 |
