CKD Pilot Operated 5 Port Valve Cellex (Selex) Valve 4F 3 Series 4F310-10-DC24V 1pc

Name: CKD Pilot Operated 5 Port Valve Cellex (Selex) Valve 4F 3 Series 4F310-10-DC24V 1pc
Brand: CKD
SKU: S010328446
Price: 1299900 IDR
Availability: OutOfStock

#Nomor SKU S010328446

Wishlist

0 Ulasan

Spesifikasi Produk

Model Number	4F310-10-DC24V
Unit	1pc
Protective Structure	Dustproof
Working Fluid	Compressed air
Atmosphere	Do not use in corrosive gas atmosphere
Rated Voltage (V)	DC24V
Maximum Working Pressure (MPa)	1.0
Guaranteed Pressure Resistance (MPa)	1.5
Working Pressure (MPa)	0.1 to 1.0
Effective Cross Section Area (mm²)	32
Fluid Temperature (°C)	5 to 60
Vibration (m/s²)	less than 50
Valve Specification	Pilot type soft spool valve
Ambient Temperature (°C)	-5 to 60

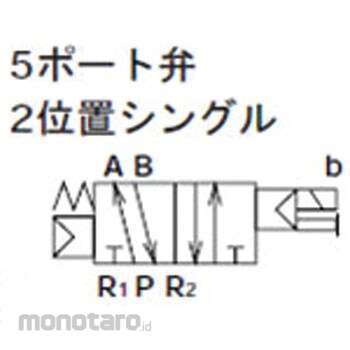

Switching Method	2 position single
Number of Positions	2
Connection aperture (Rc)	3/8
Number of Ports	5
Impact Resistance (m/s²)	300 or less
Connection aperture	RC3/8
Type	Direct piping type
Refueling	Unnecessary
M Code	5709146
Berat (Kg)	0.8
Tanggal Produk Terdaftar	13 May 2019
Terakhir Diperbaharui	27 May 2025
